9. Reference: Connector Pinouts and Cable Signal Mappings

This section contains complete pinouts for the connectors on the RAD-Comet3.

9.1. RAD-Comet3 Connector Pinouts

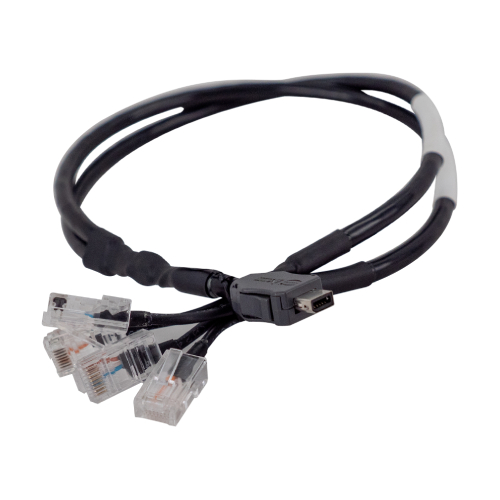

9.1.1. iX to 2x pigtail pairs, 0.3m cable

Cable for use with iX-compatible products having a AE06-AE07 ports, including the RAD-Comet3.

Note

Available for purchase: iX to 2x pigtail pairs, 0.3m cable

AE06 Channel

iX Pin	Signal	RJ45 Connector	RJ45 Pin
1	AE06P	AE06	4
2	AE06N	AE06	5
3	GND	AE06	8

AE07 Channel

iX Pin	Signal	RJ45 Connector	RJ45 Pin
6	AE07P	AE07	4
7	AE07N	AE07	5
8	GND	AE07	8

Pass-Through Connections

RJ45 Connector	Pin 4	Pin 5	Pin 8
AE06	Connected to AE06 Pin 4	Connected to AE06 Pin 5	Connected to AE06 Pin 8
AE07	Connected to AE07 Pin 4	Connected to AE07 Pin 5	Connected to AE07 Pin 8

NOTE: Check product guide of your Intrepid device or the pinout of this cable for compatibility. Intended for an iX connector with two AE networks (AE06-AE07).

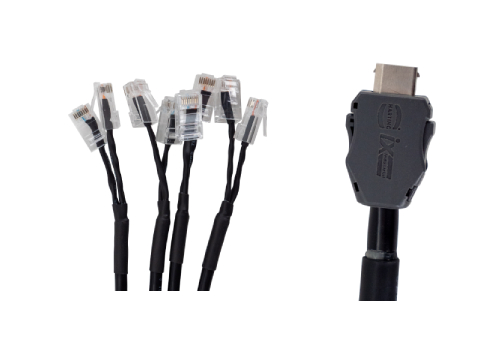

9.1.2. iX to 4x pigtail pairs, 0.3m cable

Cable for use with iX-compatible products having a single iX connector with AE02-AE05 ports, including the RAD-Comet3.

Note

Available for purchase: iX to 4x pigtail pairs, 0.3m cable

AE02 Channel

iX Pin	Signal	Connector	Pin
1	AE02P	AE02	4
2	AE02N	AE02	5
3	GND	AE02	8

AE04 Channel

iX Pin	Signal	Connector	Pin
4	AE04P	AE04	4
5	AE04N	AE04	5
3	GND	AE04	8

AE03 Channel

iX Pin	Signal	Connector	Pin
6	AE03P	AE03	4
7	AE03N	AE03	5
8	GND	AE03	8

AE05 Channel

iX Pin	Signal	Connector	Pin
9	AE05P	AE05	4
10	AE05N	AE05	5
8	GND	AE05	8

Note

• AE02 and AE04 share the ground connection on iX Pin 3.

• AE03 and AE05 share the ground connection on iX Pin 8.

Each differential pair is routed to the corresponding connector:

• P → Pin 4

• N → Pin 5

• GND → Pin 8

Check product guide of your Intrepid device or the pinout of this cable for compatibility. Intended for an iX connector with four AE networks (AE02-AE05).
