5. Advanced Features

5.1. Test Modes

5.1.1. Packet Generator and Checker

In addition to the IEEE 802.2ch test modes, the RAD-Moon3 can be used as a packet generator and checker.

Pressing the button will cycle through the 4 modes below.

Note:

The Packet Generator and Checker is a feature of only the 2.5/5/10G-T port. (RJ-45)

5.1.2. IEEE 802.3ch Test Modes

IEEE 802.3ch defines a number of test modes for a MultiGBASE-T1 PHY. These test modes can be accessed by holding down and while the unit is unpowered and then connecting power. While in this mode, the two activity LEDs above the RAD-Moon3 logo will rapidly flash amber in unison.

Pressing the button cycles through each of these test modes. The mode can be exited with a power cycle.

The 3 LEDs on the membrane buttons are a binary representation of the test mode number. For example, if the LED Status from left to right were on/off/on, this would be a binary 101, or decimal 5. If a test mode has multiple submodes, this is represented by different colors of the LEDs. The active test mode can be determined using the table below.

Note

In certain Test modes, the device may not function as a media converter and will be limited to the functionality either stated here in the description or stated in the 802.3ch specification.

5.2. Device Register Access

Ethernet PHYs and switches contain many status and configuration registers. The method in which these registers are accessed depend on both the device and decisions made during the electrical design of the product. Intrepid products access PHY and Switch registers either using MDIO or SPI interfaces. The table below lists the Ethernet devices contained in your product along with the management interface information needed to access a device’s registers using Vehicle Spy or Intrepid’s Open Source API.

5.2.1. Ethernet Device Register Interfaces

The MDIO addressing for the RAD-Moon3 is as follows.

Device	Port	MDIO Bus Index	PHY Address	Protocol
RAD-Moon3	MultiGBASE-T1	0x0	0x00	Clause45
	MultiGBASE-T	0x0	0x10

5.2.2. MDIO Protocol

This section provides an introduction and overview of the MDIO protocol.

Already familiar with MDIO?

If this information is not needed, skip to the following sections for instruction on how to use this protocol with Vehicle Spy or Intrepid’s Open Source API.

Each MDIO frame is 32 bits:

• 2 start bits

• 2 bit operation code

• 5 bit phy address

• 5 bit register address

• 2 bit turn around delay

• 16 bits of data.

As Ethernet devices has evolved over the years, so has the protocol used to communicate with them. Devices in Intrepid products use either Clause 22 or Clause 45, which will be explained in the following sections.

Clause 22

The initial protocol, IEEE 802.3 Clause 22, was designed to read or write 32 registers within 32 devices. Each read/write is done in one operation.

• Phy Address 5 bits (0 – 31 decimal)

• Register address 5 bits (0 – 31 decimal) or (0 – 1F hex)

• Data 16 bits

Page Register

Some Ethernet Phy manufacturers added a page register to allow for more registers in Clause 22. The page can be 0 – 255 decimal. If the Phy does not support pages, then page will be ignored. When using pages, reads and writes can no longer be performed in one operation. Instead you must write to the page register and then before any other process changes the page, you can read or write the destination register. If another process were to change the page register before you finish, the result will be an read the wrong register or an write to wrong register which may cause the Phy to stop working.

Common Clause 22 Registers

Clasuse 22 Registers	Bits	Function/Status
Control Register (Register 0)	15	reset
	14	loopback
	12	auto negotiate
	11	power down
	10	isolate
	9	renegotiate
	8	duplex
	7	collision test
	6/13	speed	10=1000mbps
			01=100mbps
			00=10mbps
Status Register (Register 1)	5	Auto Negotiation Complete
	4	Remote Fault
	3	Auto Negotiation Capability
	2	Link Status
	1	Jabber Detect
	0	Extended Capability

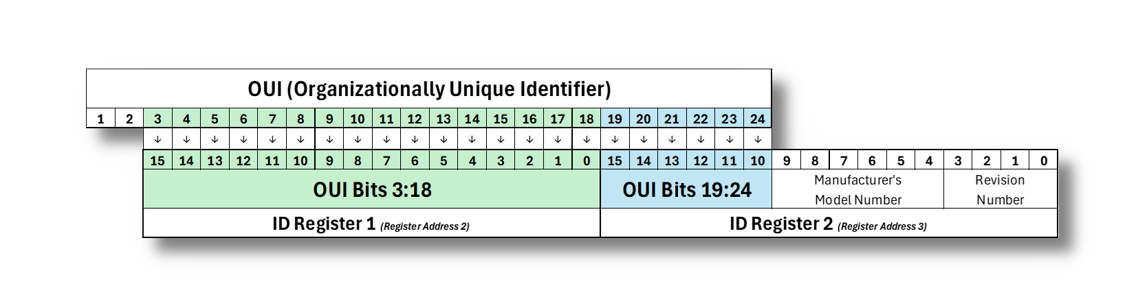

Phy ID Reg 1 (Register 2)	15:0	OUI MSB
PHY ID Reg 2 (Register 1)	15:10	OUI LSB
	9:4	Model Number
	3:0	Revision Number

Clause 45

As Ethernet Phys became more complicated and supported different speeds and connections, IEEE 802.3 Clause 45 was added. Because the Register Address is now 16 bits, each read/write takes at 2 operations. The first operation is always writing the Register Address that you want to use in the next operation. The second is the actual read or write. There is also a special read that increments the address after each read which allows you to write a starting address and then read a whole block of registers.

• Port 5 bits (this is equivalent to the Phy Address)

• Device 5 bits (this is similar to the page)

• Register address 16 bits (this allows 65536 registers in each device)

• Data 16 bits

Common Clause 45 Registers

PMA/PMD Registers

	Device	Register	Bits	Function/Status
Control Register	1	0	15	reset
			11	power down
			6/13	speed (10-1000mbps)	11=Speed set by bits 5:2
					10=1000mbps
					01=100mbps
					00=10mbps
			5:2	speed (2.5-10 Gbps)	0111=5 Gbps
					0110=2.5 Gbps
					0000=10 Gbps
Device ID Reg 1	1	2	15:0	Auto Negotiation Complete
Device ID Reg 2	1	3	15:10	OUI LSB
			9:4	Model Number
			3:0	Revision Number

PCS Registers

	Device	Register	Bits	Function/Status
Control Register	3	0	15	reset
			14	loopback
			11	power down
			6/13	speed	10=1000mbps
					01=100mbps
					00=10mbps
Device ID Reg 1	3	2	15:0	Auto Negotiation Complete
Device ID Reg 2	3	3	15:10	OUI LSB
			9:4	Model Number
			3:0	Revision Number

5.2.3. Using MDIO with Intrepid Devices

MDIO access to Registers in Intrepid devices can be accomplishes using:

• Vehicle Spy 3 Software

• libicsneo , the Intrepid Control Systems cross-platform device communication library. Installation and usage documentation for libicsneo can be found within each of the respective APIs.

The following sections provide examples for each method of MDIO register access.

Vehicle Spy 3 Software MDIO Example

Coming Soon!

C++ MDIO Example:

The following code block is an example of writing and reading to a register using the C++ API .

// We can transmit messages to write to arbitrary register
std::cout << "\tTransmitting a MDIO request to write register on 88Q2112...\n";
mdio_r = std::make_shared<icsneo::MDIOMessage>();
mdio_r->network = icsneo::Network::NetID::MDIO1;
mdio_r->phyAddress = 0x06u;
mdio_r->devAddress = 0x01u;
mdio_r->regAddress = 0x0902u;
mdio_r->data = {0xA3, 0x02};
mdio_r->direction = icsneo::MDIOMessage::Direction::Write;
mdio_r->clause = icsneo::MDIOMessage::Clause::Clause45;
ret = device->transmit(mdio_r); // This will return false if the device does not support MDIO
std::cout << (ret ? "OK" : "FAIL") << std::endl;

// We can transmit messages to read back to arbitrary register
std::cout << "\tTransmitting a MDIO request to read register on 88Q2112...\n";
mdio_r = std::make_shared<icsneo::MDIOMessage>();
mdio_r->network = icsneo::Network::NetID::MDIO1;
mdio_r->phyAddress = 0x06u;
mdio_r->devAddress = 0x01u;
mdio_r->regAddress = 0x0902u;
mdio_r->direction = icsneo::MDIOMessage::Direction::Read;
mdio_r->clause = icsneo::MDIOMessage::Clause::Clause45;
ret = device->transmit(mdio_r); // This will return false if the device does not support MDIO
std::cout << (ret ? "OK" : "FAIL") << std::endl;

An complete example of how to use MDIO through the C++ API can be found here: MDIO C++ Example

Python MDIO Example:

The following code block is an example of writing and reading to a register using the Python API .

import icsneopy

a = icsneopy.MDIOMessage()
a.network = icsneopy.Network(icsneopy.Network.NetID.MDIO1)
a.phyAddress = 0x00
a.regAddress = 0x02
a.direction = icsneopy.MDIOMessage.Direction.Read
a.clause = icsneopy.MDIOMessage.Clause.Clause22
dev.transmit(a)

b = icsneopy.MDIOMessage()
b.network = icsneopy.Network(icsneopy.Network.NetID.MDIO1)
b.phyAddress = 0x00
b.regAddress = 0x18
b.direction = icsneopy.MDIOMessage.Direction.Write
b.clause = icsneopy.MDIOMessage.Clause.Clause22
dev.transmit(b)

C MDIO Example

Coming Soon!

5.2.4. Using SPI with Intrepid Products

SPI access to Registers in Intrepid devices can be accomplishes using:

• Vehicle Spy 3 Software

• libicsneo , the Intrepid Control Systems cross-platform device communication library. Installation and usage documentation for libicsneo can be found within each of the respective APIs.

The following sections provide examples for each method of SPI register access.

Vehicle Spy 3 Software SPI Example

Coming Soon!

C++ SPI Example:

The following code block is an example of writing and reading to a register using the C++ API .

// Coming Soon!!

An complete example of how to use MDIO through the C++ API can be found here: MDIO C++ Example

Python SPI Example:

The following code block is an example of writing and reading to a register using the Python API .

# Coming Soon!!

C SPI Example

// Coming Soon!!

5.2.5. Vehicle Spy’s PHY Dashboard

PHY Dashboard is a feature of Vehicle Spy 3 allowing simple device register reads and writes using MDIO.

Opening the PHY Dashboard

The PHY Dashboard can be opened from the Embedded Tools menu in Vehicle Spy (shown below)

PHY Dashboard Interface

• Add – use this button to add MDIO operations. Ctrl-S saves screen contents to VS3 file.

• Delete – deletes the currently selected item or item.

• Delete All – deletes all operations

• Read One Time – performs all reads from the list once. No writes are performed.

• Write One Time – performs all writes from the list once. No reads are performed.

• All One Time – performs every item in the list once.

• Send Selected – performs only the selected item or items once.

• Start Monitor – performs all reads once per second.

• Stops Monitor – stops the monitor operation.

Note: all values in Hex except Phy Address/Port

PHY Dashboard Examples

Clause 22 Example:

• Line 1 writes soft reset to phy address 16, using Clause 22

• Line 2 reads Phy ID Reg1 from phy address 16 using Clause 22

• Line 3 reads Phy ID Reg2 from phy address 16 using Clause 22

Clause 45 Example:

• Line 1 writes soft reset of PCS to Port 16, Device 3 using Clause 45

• Line 2 reads PCS ID Reg1 from Port 16, Device 3 using Clause 45

• Line 3 reads PCS ID Reg2 from Port 16, Device 3 using Clause 45

MDIO Addresses for your hardware

Reference this MDIO address table for the addresses specific to your hardware.

5.3. MACsec

MACsec (802.1AE) is a Layer 2 protocol that can ensure data integrity and authenticity, as well as data encryption. The OPEN Alliance TC17 has drafted the MACsec Automotive Profile to adapt the broad standards of 802.1AE to automotive applications.

The use and operation of MACsec is well beyond the scope of this guide, but many Intrepid products contain Automotive Ethernet PHYs with MACsec support. This guide explains the different way of loading MACsec configurations and keys into the Automotive Ethernet PHY.

5.3.1. Intrepid Devices Supporting MACsec

The MACsec configuration of a PHY is contained in a yaml file that is sent to the PHY Using Vehicle Spy or one of Intrepid’s API. (Examples follow) The following table contains the information needed to address the PHY using the API.

Product	Serial #	Port	netid	config_netid
RAD-Moon2_zl	RNxxxx	100/1000BASE-T1	NETID_OP_ETHERNET1	NETID_MDIO_01
RAD-Moon3	R3xxxx	100/1000BASE-T1	NETID_OP_ETHERNET1	NETID_MDIO_01
RAD-Comet2	RCxxxx	AE01	NETID_OP_ETHERNET1	NETID_MDIO_02
RAD-Gigastar w/ SFP	GSxxxx	SFP1	NETID_ETHERNET	NETID_I2C1
		SFP2	NETID_ETHERNET2	NETID_I2C2
RAD-Galaxy2		AE01
		AE02
		AE03
		AE04
		AE05
		AE06
		AE07
		AE08
		AE09
		AE10
		AE11
		AE12
		AE13
		AE14
		AE15
		AE16

5.3.2. Configuring MACsec in Vehicle Spy 3

In Development

5.3.3. Configuring MACsec using Intrepid’s Open Source API

libicsneo is the Intrepid Control Systems device communication library.

Installation and usage documentation can be found within each of the respective APIs.

MACsec C++ API

Coming Soon!

MACsec Python API

Coming Soon!

MACsec C API

Coming Soon!

5.3.4. Configuring MACsec in using python_ics

python_ics MACsec examples

Python Installation

pip install python_ics pyyaml

Usage

ics_load_macsec.py [-h] [--yaml YAML] --port PORT [--reset] serial_number

serial_number

The serial number of the device to configure.

options

Option	Descrition	Default Value
-h, –help	show this help message and exit
–yaml YAML	filename of yaml configuration to be loaded (Assumes .yml is located in “/yaml/” directory)	test_macsec_Rule_wildcard_SecY_128_strip_strict_sci_SA_sak0.yml
–port PORT	‘config_netid’ - network ID for the port configuration network.	config_netid = NETID_I2C2
	‘netid’ - network ID for the port network.	netid = NETID_OP_ETHERNET1
–reset	Reset and clear and disable MACsec on the device, then exit; yaml configuration ignored	FALSE

Example Command Lines

RAD-Comet2/3:

python ics_load_macsec.py Rxxxxx --port "{'netid':NETID_OP_ETHERNET1,'config_netid':NETID_MDIO_02}" --yaml "test_sfp_macsec_Rule_wildcard_SecY_128_strip_strict_sci_SA_sak0.yml"

RAD-Moon2_zl:

python ics_load_macsec.py RNxxxx --port "{'netid':NETID_OP_ETHERNET1,'config_netid':NETID_MDIO_01}" --yaml "test_sfp_macsec_Rule_wildcard_SecY_128_strip_strict_sci_SA_sak0.yml"

RAD-Moon3:

python ics_load_macsec.py R3xxxx --port "{'netid':NETID_OP_ETHERNET1,'config_netid':NETID_MDIO_01}" --yaml "test_sfp_macsec_Rule_wildcard_SecY_128_strip_strict_sci_SA_sak0.yml"

RAD-Gigastar Port1 with SFP-MV2221M:

python ics_load_macsec.py GSxxxx --port "{'netid':NETID_ETHERNET,'config_netid':NETID_I2C2}" --yaml "test_sfp_macsec_Rule_wildcard_SecY_128_strip_strict_sci_SA_sak0.yml"

RAD-Gigastar Port2 with SFP-MV2221M:

python ics_load_macsec.py GSxxxx --port "{'netid':NETID_ETHERNET2,'config_netid':NETID_I2C3}" --yaml "test_sfp_macsec_Rule_wildcard_SecY_128_strip_strict_sci_SA_sak0.yml"
