Create/Edit Verbal Conversion Tables

Verbal Conversion Tables are equivalent to enumerated or state encoded decimal lookup tables. These tables take integer value inputs and apply text description outputs to them. For example, 0 = Off, 1 = On, etc.

To create or edit Verbal Conversion Tables in an A2L file use the Create or Edit tools from the Edit group in the main toolbar while the Verbal Conversion Tables tab is active in the A2L file area. A dialog will open similar to that shown in Figure 1.

EditVerbalConTable

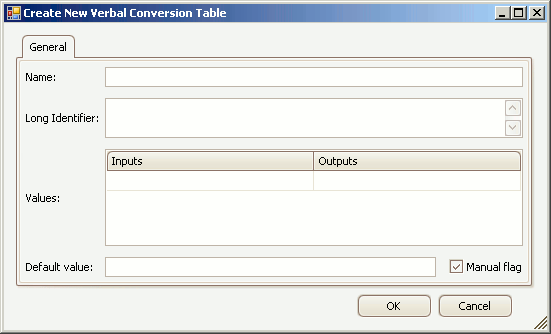

Figure 1: The dialog for creating or editing A2L file Verbal Conversion Tables.

Refer to Table 1 below for a brief description of each property. Use the OK button to close the dialog and save any changes. Use the Cancel button to close the dialog without saving any changes.

Table 1: Verbal Conversion Table Properties​

PropertyDescription
NameUnique identifier of the Verbal Conversion Table.

Here are the main requirements for this field:

  • Max overall length = 1024 characters.
  • Max partial string length = 128 characters.
  • Allowed characters: A - Z, a - z, 0 - 9, underscores, periods, and brackets [ ].
  • Must NOT contain spaces.
  • First character must be a letter or an underscore.
  • Any brackets must occur in pairs at the end of a partial string.
  • Any bracket pairs must surround a number or string.
  • Name is case sensitive. (i.e. "b" and "B" are considered unique)

If in doubt about valid names, please refer to the ASAM specifications.
Long IdentifierComment or description.
InputsEach cell in this column is allowed a single integer value input. (i.e. 0, 1, etc.) Multiple rows with the same input value are not allowed.
OutputsEach cell in this column assigns a text description label to its Input. (i.e. Off, On, etc.)
Default ValueDefault text display for undeclared Inputs.
