Display: Setup Screens

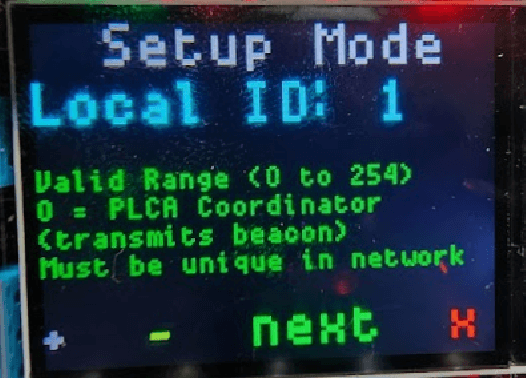

When the green button is pressed from the main screen the device setup screens appear.
These setup screens allow you to adjust the parameters below. These parameters without a description are explained in the main screen topic. Buttons Gray (+) and Button Yellow (-) increment and decrement the parameter. The green button (next) saves and moves to the next parameter. When all parameters are entered the red button (x) will save the settings into internal flash as the default power up settings.
| Setting | Description | Notes |
|---|---|---|
| PLCA Enabled | ||
| PLCA Local ID | ||
| Node Count | ||
| Transmit Opportunity Timer | ||
| Max Burst for Burst Mode | ||
| Burst Timer | ||
| Oscilloscope Trigger | Selection for trigger type | |
| Tx IFG | Inter -frame gap for transmit messages | |
| Tx Cnt | Number of Transmits in the packet generator | |
| Delay | Delay in micro seconds between packets in the packet generator | |
| Size | Size of the packet in the packet generator | Size = 0 generates a random size packet |
| Rate | Line Rate setting in the packet generator |
