Host USB Commands
NOTE : This feature is currently disabled. Contact Intrepid support for availability.
Overview
The RAD-Meteor has the ability to receive commands over the normal Ethernet data stream. RAD-Meteor will intercept host messages targeted to the MAC Address 00:FC:70:1C:00:00. These Ethernet frames are processed by RAD-Meteor and discarded (they are not sent on the T1s bus).
Similarly RAD-Meteor will send responses or status using this same mac address.
Please see the RAD-Meteor settings project on GitHub to use as an example app (Figure 1).
Settings App Example
The RAD Meteor example settings app is an open source app from Intrepid. The Windows App is below. You need to install WinPCAP for this to work.

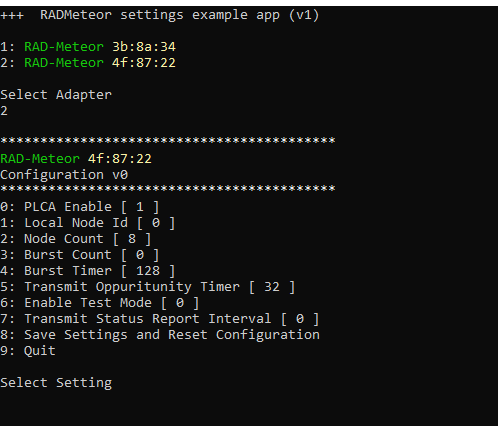

Example Windows Console app to change settings
Commands
The data payload begins at 42 bytes. The first two bytes of the payload are the command in big endian format (AA is the first byte). The command's data begins right after the command (44 bytes). The table below lists the commands.
| Command | ID | Notes |
|---|---|---|
| HOST_COMMAND_SET_SETTINGS | 0xAA01 |
Settings Command
The settings command allows you to set the device settings from the host. You can optionally have them saved as the power up default. The settings example app uses this command - please reference this app for an example. The settings are the same as described in the Main Screen topic.
The payload bytes not used should be set to zero for future compatibility.
Note The defaults are stored in flash memory and are not meant to be updated 1000's times a day as might happen in a tester application. So do not save settings to flash if its not necessary. The flash typical endurance is 100k writes.
Command: 0xAA01
Data
| Position | ID | Notes |
|---|---|---|
| HOST_SETTING_PLCA_ENABLE | 0 | 1 to enable, 0 Disable |
| HOST_SETTING_PLCA_LOCAL_ID | 1 | |
| HOST_SETTING_BUS_NODE_COUNT | 2 | |
| HOST_SETTING_MAX_BURST_CNT | 3 | |
| HOST_SETTING_BURST_TIMER | 4 | |
| HOST_SETTING_TX_OPP_TMR | 5 | |
| HOST_SETTING_TEST_MODE | 6 | 0 = enter normal mode, 1-4 = Test Modes (Not saved in flash as default) |
| HOST_SETTING_STATUS_INTERVAL_LSB | 7 | Bytes 7 and 8 are 16 bit value for reporting register status in milliseconds. 0 = disabled |
| HOST_SETTING_SAVE_SETTINGS_TO_FLASH | 9 | 1 = update as power up defaults, 0 = do not update. |
| HOST_SETTING_OSCOPE_TRIGGER | 10 | 0 = disabled, x is scope trigger |
