RAD-Meteor
Introduction and Overview
Low cost device for interacting with 10BASE-T1s networks.

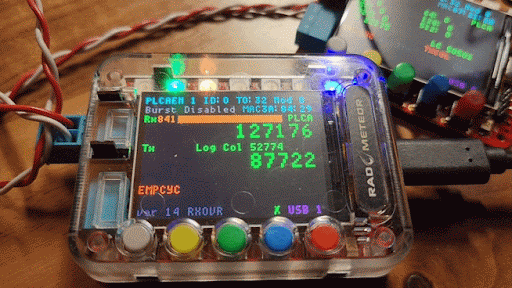

Intrepid’s RAD-Meteor is a cost effective means to add a 10BASE-T1S (IEEE Std 802.3cg) port to your computer using USB. In addition to monitoring 10BASE-T1S traffic as if it were a standard Ethernet port, the RAD-Meteor network adapter supports the test modes and wave forms required to test the 10BASE-T1S network. RAD-Meteor also has a built-in full color display to view network activity and monitor the 10BASE-T1S status registers.
BUY NOW Visit: https://store.intrepidcs.com/product/rad-meteor
Features
- USB Network Adapter with 10BASE-T1S Physical Layer (PHY)
- Enumerates as standard Ethernet NIC in Linux or Windows.
- Monitor Ethernet with Vehicle Spy or Wireshark
- TX/RX with socket applications
- Microchip LAN867X 10BASE-T1S PHY
- Removable Terminal Block with optional termination for T1s connections
- Oscilloscope Trigger on bus events
- Stand Alone Packet generator
- 320 x 240 Color Display for monitoring network and displaying 10BASE-T1S status registers
- Stand-alone configuration of 10BASE-T1S parameters and test modes via 5-button interface
- 7 LEDs for indication of network and device status
- Field updatable firmware
FW Revision see Device Release History
Specifications
General
- Power Requirements 125mA at 5 V (bus load 1%), 140 mA at 5V (Test Mode 1)
- USB Full Speed interface (12 MBits)
- Micro USB Connector
- Size: 65 mm x 35 mm (17 mm height)
- Field update-able Firmware with un-brickable boot-loader
- USB Network Interface uses OS drivers in Linux and Windows
- Temperature Range -20 C to 70 C / -4 F to 158 F (extended temp range possible without display)
Network
- Microchip LAN8670 10BASE-T1S Single Pair Ethernet PHY
- Microchip Recommended LAN86xx Bus Interface Network (BIN)
- Jumper Termination
- Terminal block (2 mm screw)
