LED Indicators
Overview

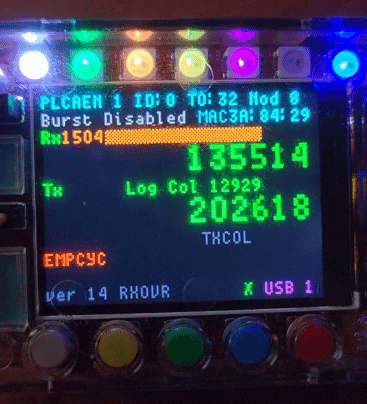

The RAD-Meteor has 7 LEDs that show status of the network and the device. The function of these LEDs are listed below:
| LED | Color | Description |
|---|---|---|
| 1 | White | Flashes when the Trigger it activated |
| 2 | Green | Lit when PLCA is active |
| 3 | Orange | Lit when Packet generator is active |
| 4 | Yellow | Flashes when packets are received |
| 5 | Purple | Flashes when packets are transmitted |
| 6 | Red | Flashes when CRC Errors or Tx Collision errors are present. Cleared with RED button on main screen. |
| 7 | Green/Blue | Flashes on USB Transmit or Receive |
