LIN Slave Section

The LIN Slave section includes the data of the LIN frame followed by the checksum. The slave section follows the LIN Header part of the LIN Frame.

image-69

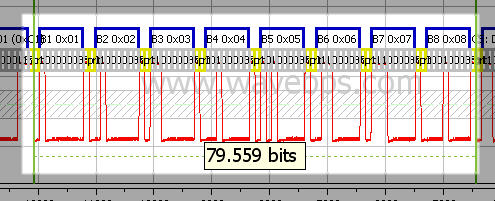

The LIN Data section includes up to 8 data bytes

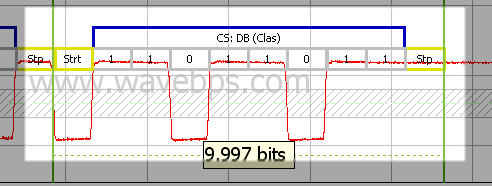

After the data section is the checksum. The checksum will vary based on the LIN specification. LIN supports both a classic and enhanced checksum. The classic checksum uses all the databytes while the enhanced also includes the ID.

image-71

The LIN Checksum is the last part of the LIN frame.
