J1850

J1850 is an older protocol used by North American manufactures for Vehicle networking. More information on J1850 can be found in the SAE J1850 specification from SAE.org.

image-2

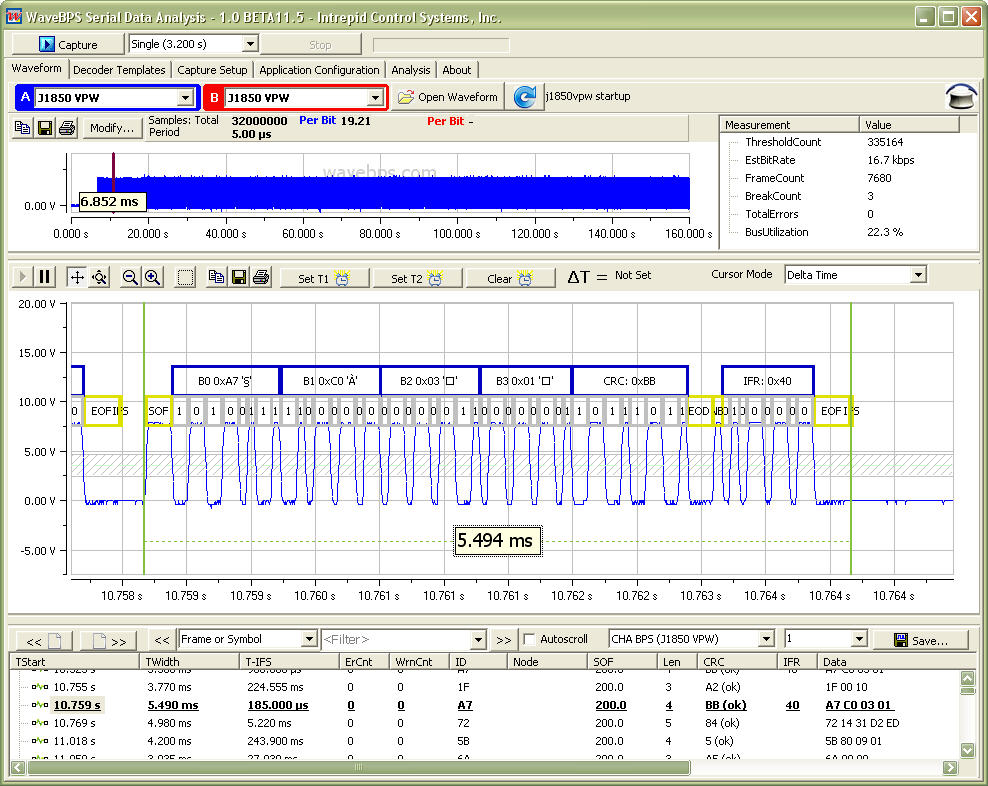

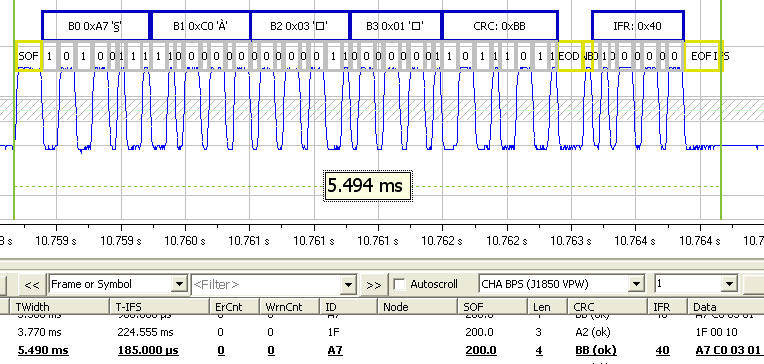

This J1850 waveform from a Chrysler vehicle supports a 1 byte IFR section.

Full Image

image-49
