Automotive Ethernet BroadR-Reach (100BASE-T1) Cable (Dual Molex Mini50) - 3' (1 m)

br-cable-1-mini50

Product Code: BR-CABLE-1-MINI50

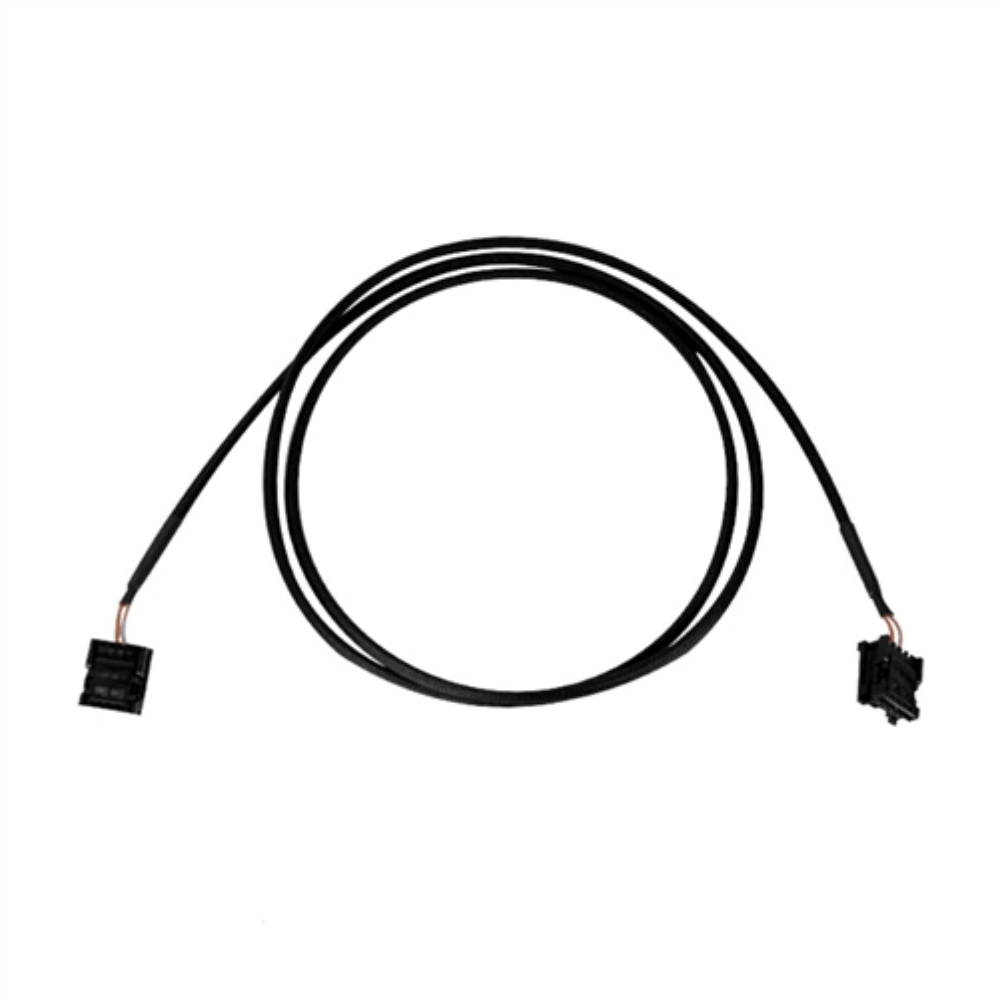

100BASE-T1 unshielded twisted pair cable designed for use with Intrepid's Automotive Ethernet products, terminated with Molex Mini50 connectors.

Overview

A 100BASE-T1 cable designed for use with Intrepid's Automotive Ethernet products, such as the RAD-Galaxy and RAD-Moon. The cable consists of a single unshielded twisted pair, protected by a non-conductive mesh cover, each end terminated with an automotive-approved Molex Mini50 connector. It meets OPEN Alliance, IEEE and BroadCom BroadR-Reach(R) physical specifications.

Connector Pinouts and Signal Mapping
Pin # Label Description
1 No Connect
2 TRD+ Data transmit and receive, positive
3 TRD- Data transmit and receive, negative
4 No Connect

Physical Dimensions:

  • Length: 3' (1 m)
  • Weight: 0.5 oz (14 g)

For more details, please visit our product support page or contact our support team.
