Product Code: DB26-1-DB25-DB9-CABLE
Overview

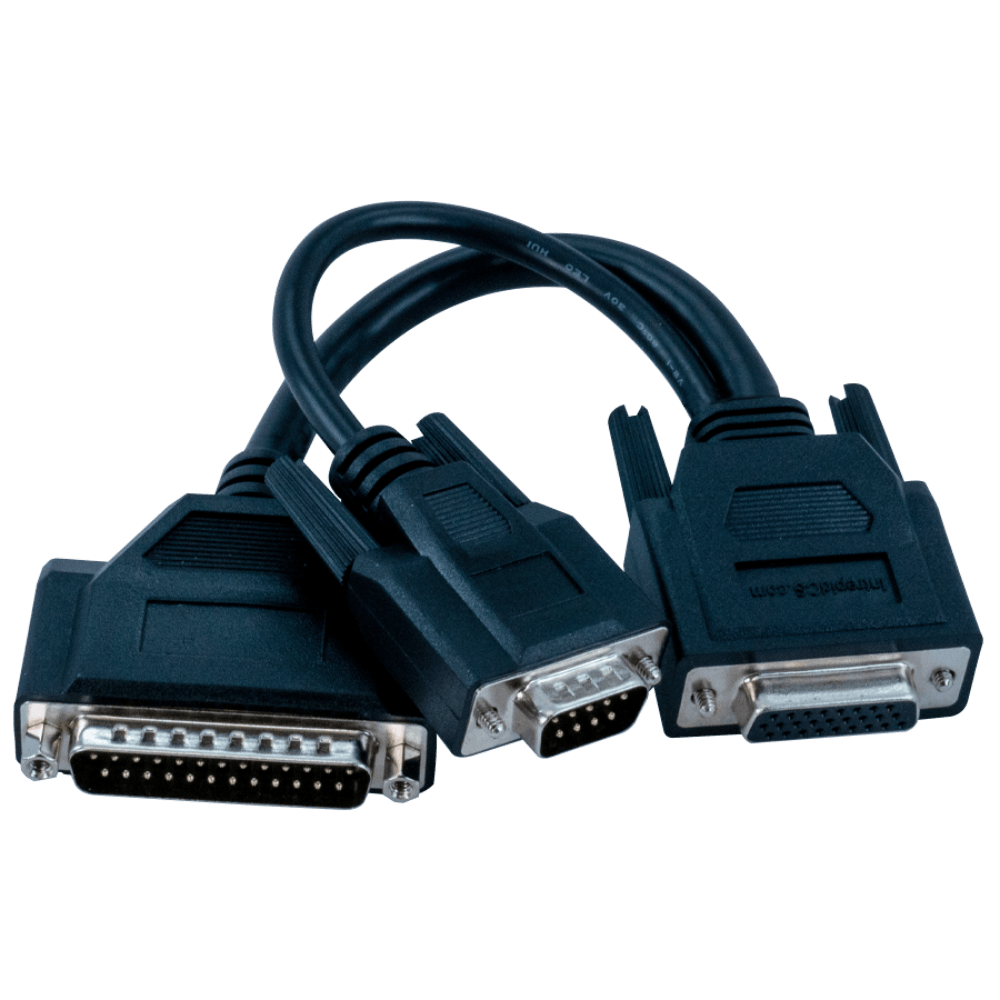

Converts the HD-26F connector on products with a DB26-1 connector to 1x DB-25M and 1x DB-9 connector.
| Signal | HD-26F Pin # | DB-25M Pin # | DB-9M Pin # |
|---|---|---|---|
| MISC 1 | 1 | -- | 6 |
| DW CAN 4 L | 2 | 23 | -- |
| DWCAN 5 L | 3 | 22 | -- |
| DW CAN 1 L | 4 | 15 | -- |
| DW CAN 8 L | 5 | 6 | -- |
| DW CAN 2 L | 6 | 17 | -- |
| DW CAN 3 L | 7 | 20 | -- |
| DW CAN 6 L | 8 | 4 | -- |
| MISC 2 | 9 | -- | 7 |
| GND | 10 | 13 | 5 |
| MISC 3 | 11 | -- | 8 |
| DW CAN 4 H | 12 | 18 | -- |
| DW CAN 5 H | 13 | 21 | -- |
| DW CAN 1 H | 14 | 14 | -- |
| DW CAN 8 H | 15 | 5 | -- |
| DW CAN 2 H | 16 | 16 | -- |
| DW CAN 3 H | 17 | 19 | -- |
| DW CAN 6 H | 18 | 3 | -- |
| V+ | 19 | 25 | -- |
| MISC 4 | 20 | -- | 9 |
| DW CAN 7 L | 21 | 7 | -- |
| LIN 1 | 22 | 8 | 1 |
| LIN 2 | 23 | -- | 2 |
| EXT WAKE | 24 | -- | 3 |
| ETH ACTIVATE (DOIP) | 25 | -- | 4 |
| DW CAN 7 H | 26 | 1 | -- |
