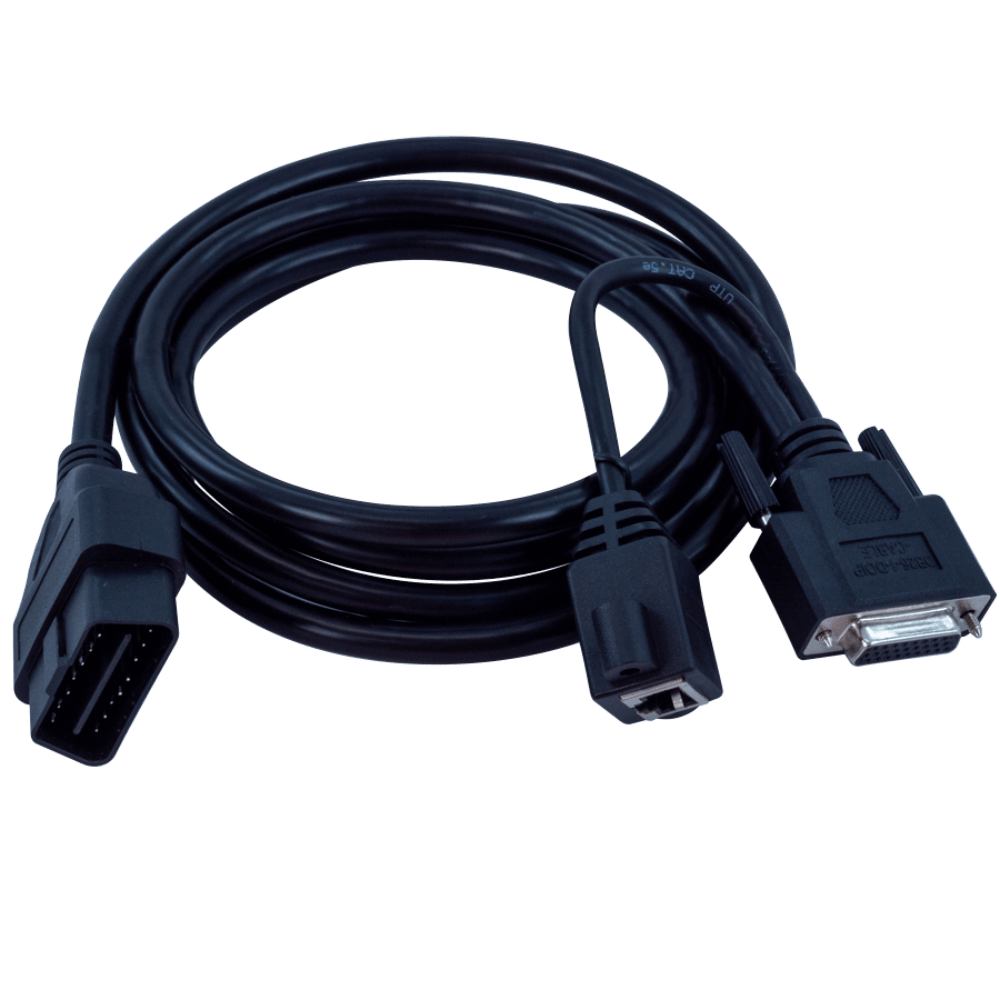

OBD Cable for Diagnostics over IP (DoIP) Support (HD-26F + RJ-45 to OBD-II)

db26-1-doip-cable

Product Code: DB26-1-DOIP-CABLE

Connects the DB26-1 connector on the neoVI Fire 3 / Red 2 Series to an OBD-II (J1962) connector for DoIP. RJ-45 on this cable is connected to ETH01 port via a separate CAT6 cable for DoIP functionality.

Connector Pinouts and Signal Mapping
PIN Description
1 DW CAN 3 H
2 DW CAN 2 H
3 ETH RX+
4 GND
5 GND
6 DW CAN 1 H
7 DW CAN 4 H
8 ETH ACTIVATION
9 DW CAN 3 L
10 DW CAN 2 L
11 ETH RX-
12 ETH TX+
13 ETH TX-
14 DW CAN 1 L
15 DW CAN 4 L
16 PWR

Physical Dimensions:

  • Length: 7' (2.13 m)
  • Weight: 11.125 oz (317 g)
