Product Code: DB26-2-DB25-DB9-RJ45-CABLE

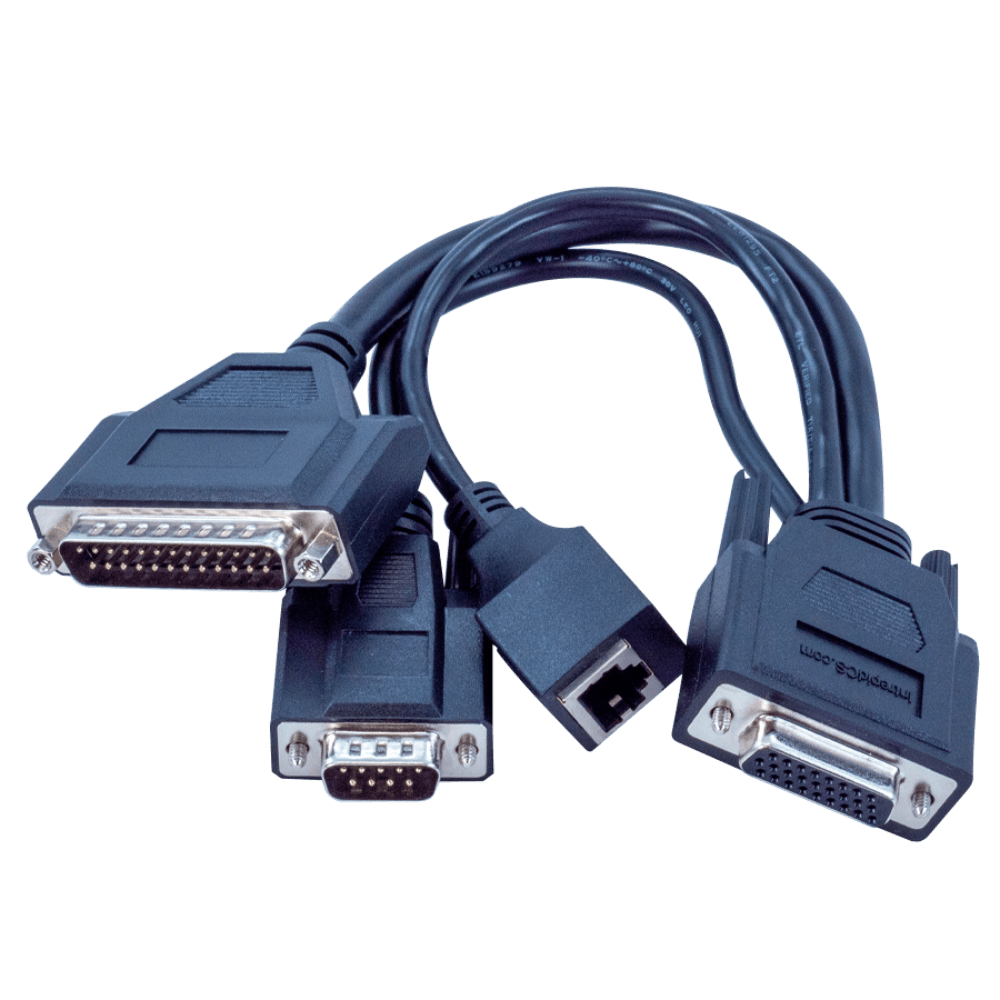

Converts the HD-26F connector on DB26 #2 (Fire 3), neoVI FIRE2, and RAD-Gigastar to DB-25M, DB-9 and RJ-45 (Ethernet) connectors. Compatible with neoVI FIRE3 (2nd DB26), RAD-Gigastar, neoVI Fire 2, Fire 2 VNET.
Overview
This adapter cable converts the HD-26F #2 connector on the neoVI FIRE3, the neoVI FIRE2, the RAD-Gigastar, and FIRE2 VNET (for the neoVI ION) to DB-25M, DB-9M and RJ-45 (Ethernet) connectors.
| Signal | HD-26F Pin # | DB-25M Pin # | DB-9M Pin # | RJ-45 Pin # |
|---|---|---|---|---|
| ETH TX+ | 1 | 1 | ||
| HS CAN 4 L | 2 | 23 | ||
| HS CAN 5 L | 3 | 22 | ||
| HS CAN 1 L | 4 | 15 | ||
| MS CAN 1 L | 5 | 6 | ||
| HS CAN 2 L | 6 | 17 | ||
| HS CAN 3 L | 7 | 20 | ||
| HS CAN 6 L / LSFT CAN 1 L | 8 | 4 | ||
| ETH TX - | 9 | 2 | ||
| GND | 10 | 13 | 5 | |
| ETH RX+ | 11 | 3 | ||
| HS CAN 4 H | 12 | 18 | ||
| HS CAN 5 H | 13 | 21 | ||
| HS CAN 1 H | 14 | 14 | ||
| MS CAN 1 H | 15 | 5 | ||
| HS CAN 2 H | 16 | 16 | ||
| HS CAN 3 H | 17 | 19 | ||
| HS CAN 6 H / LSFT CAN 1 H / SW CAN 2 | 18 | 3 | ||
| V BATT | 19 | 25 | ||
| ETH RX- | 20 | 6 | ||
| HS CAN 7 L / LSFT CAN 2 L | 21 | 7 | ||
| ISO K / LIN 1 | 22 | 8 | 1 | |
| LIN 2 | 23 | 2 | ||
| LIN 3 | 24 | 3 | ||
| ETH ACTIVATE | 25 | 4 | ||
| HS CAN 7 H / LSFT CAN 2 H / SW CAN 1 | 26 | 1 |
Physical Dimensions:
For more details, please visit our product support page or contact our support team.
