OBD Cable for Diagnostics over IP (DoIP) Support (neoVI Fire 2, neoVI ION and neoVI Fire 3 ONLY, HD-26F to OBD-II)

db26-2-doip-cable

Product Code: DB26-2-DOIP-CABLE

Overview

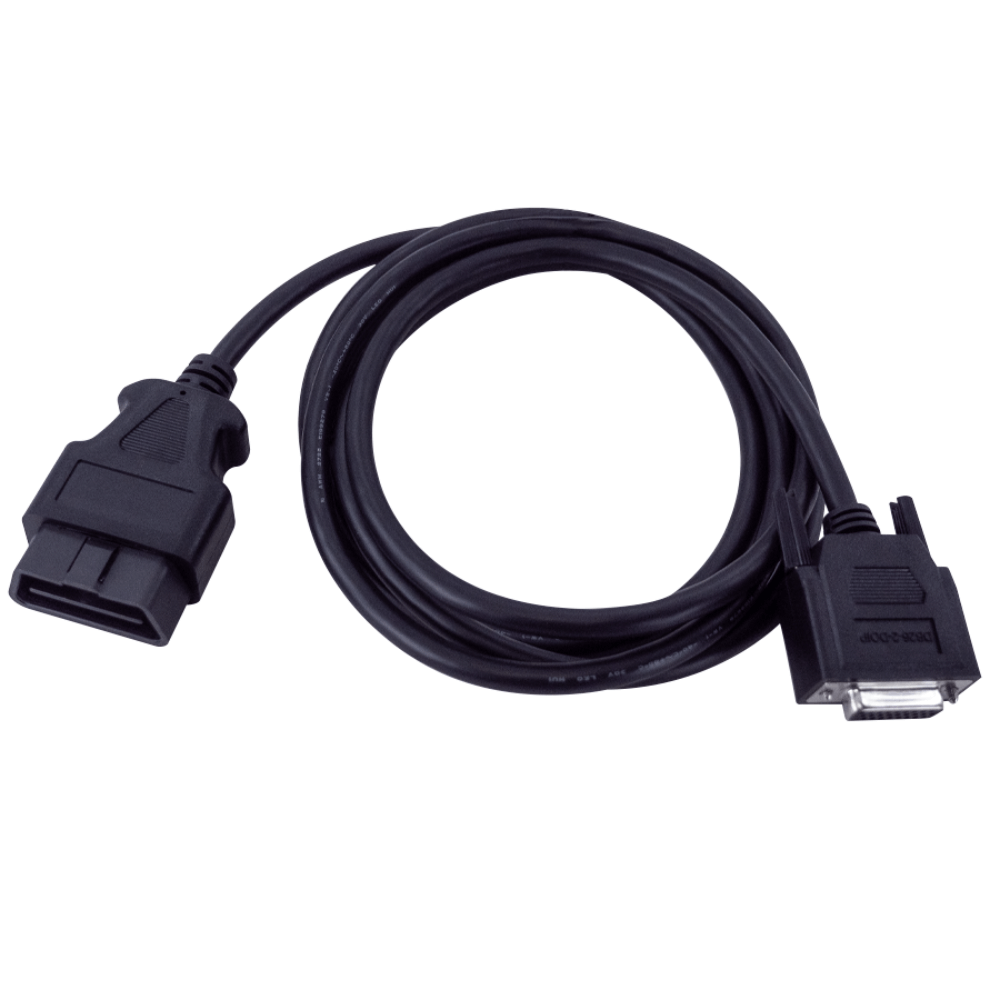

Connects the DB26-2 connector on the neoVI Fire 2, neoVI ION and neoVI Fire 3 to an OBD-II (J1962) connector for DoIP.

Connector Pinouts and Signal Mapping
PIN Description
1 DW CAN 08 H
2 DW CAN 02 H
3 Eth Tx+
4 GND
5 GND
6 DW CAN 01 H
7 DW CAN 03 H
8 Eth Active
9 DW CAN 08 L
10 DW CAN 02 L
11 Eth Tx-
12 Eth Rx+
13 Eth Rx-
14 DW CAN 01 L
15 DW CAN 03 L
16 V Batt

Physical Dimensions:

  • Length: 6' (2 m)
  • Weight: 11.125 oz (317 g)

For more details, please visit our product support page or contact our support team.
