neoVI FIRE 2 OBD Cable with Diagnostics over IP (DoIP) Support (HD-26F to DB-25M + DB-9M + OBD-II)

fire2-obd-doip

Product Code: FIRE2-OBD-DOIP

Breaks out the HD-26F connector on the neoVI FIRE 2 into DB-25M, DB-9M and OBD-II (J1962) connectors. Suitable for gatewaying all traffic over pins 6 and 14 exclusively, or for use with Diagnostics over IP (DoIP).

Overview

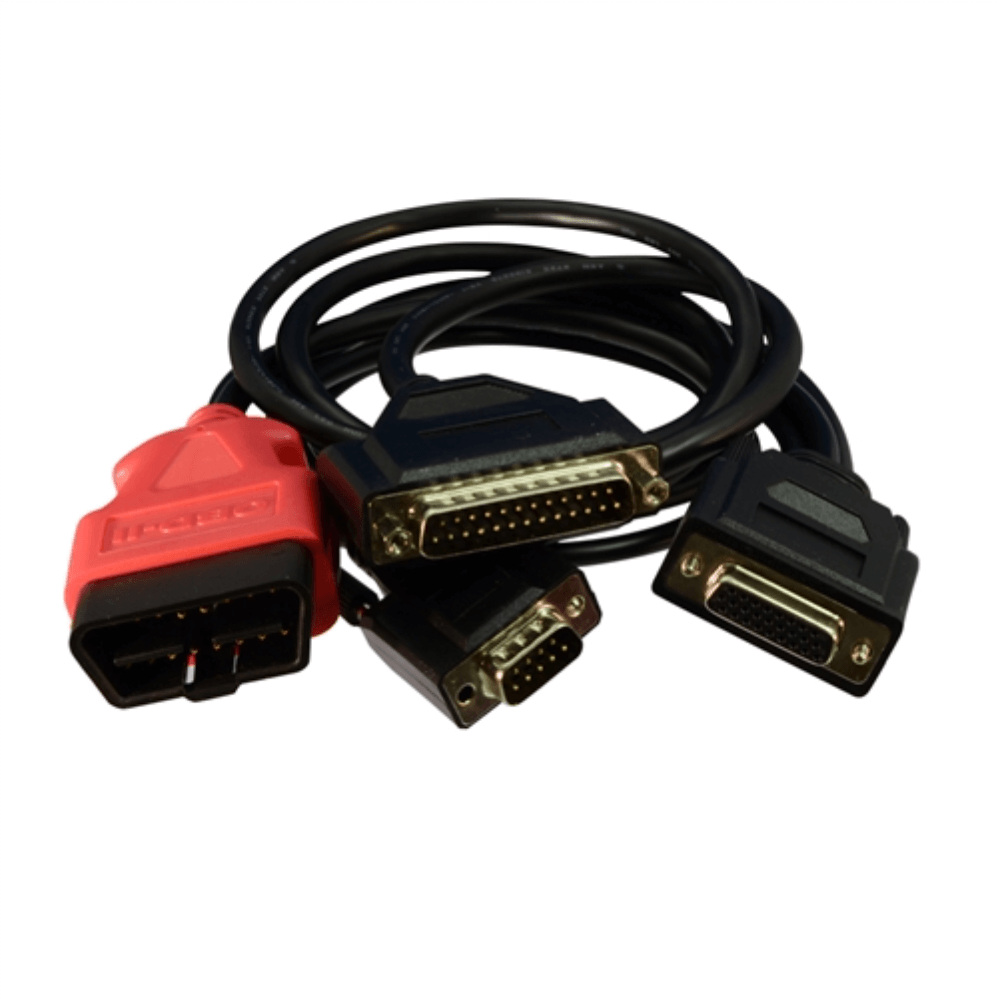

This cable breaks out the HD-26F connector on the neoVI FIRE 2 to DB-25M, DB-9M and OBD-II (J1962) connectors.

The cable connects HSCAN (pins 6 and 14) to the HSCAN channel of the neoVI FIRE 2, and the Ethernet TX/RX lines to the discretionary pins, in accordance with ISO 13400-3. It is suitable for all vehicles that gateway all traffic over pins 6 and 14 exclusively, or for use with Diagnostics over IP (DoIP) as specified in ISO 13400.

Connector Pinouts and Signal Mapping
Signal HD-26F Pin # DB-25M Pin # DB-9M Pin # OBD-II Pin #
ETH TX+ 1 3
HS CAN 4 L 2 15
HS CAN 5 L 3 6
HS CAN 1 L 4 14
MS CAN 1 L 5 9
HS CAN 2 L 6 17
HS CAN 3 L 7 20
HS CAN 6 L / LSFT CAN 1 L 8 4
ETH TX - 9 11
GND 10 13 5 5
ETH RX+ 11 12
HS CAN 4 H 12 14
HS CAN 5 H 13 5
HS CAN 1 H 14 6
MS CAN 1 H 15 1
HS CAN 2 H 16 16
HS CAN 3 H 17 19
HS CAN 6 H / LSFT CAN 1 H / SW CAN 2 18 3
V BATT 19 25 16
ETH RX- 20 13
HS CAN 7 L / LSFT CAN 2 L 21
ISO K / LIN 1 22 8 1
LIN 2 23 2
LIN 3 24 3
ETH ACTIVATE 25 4 8
HS CAN 7 H / LSFT CAN 2 H / SW CAN 1 26 1

Physical Dimensions:

  • Length: 7' (2.13 m)
  • Weight: 11.125 oz (317 g)

For more details, please visit our product support page or contact our support team.
