Product Code: FLEXRAY-VNETZ-CABLE

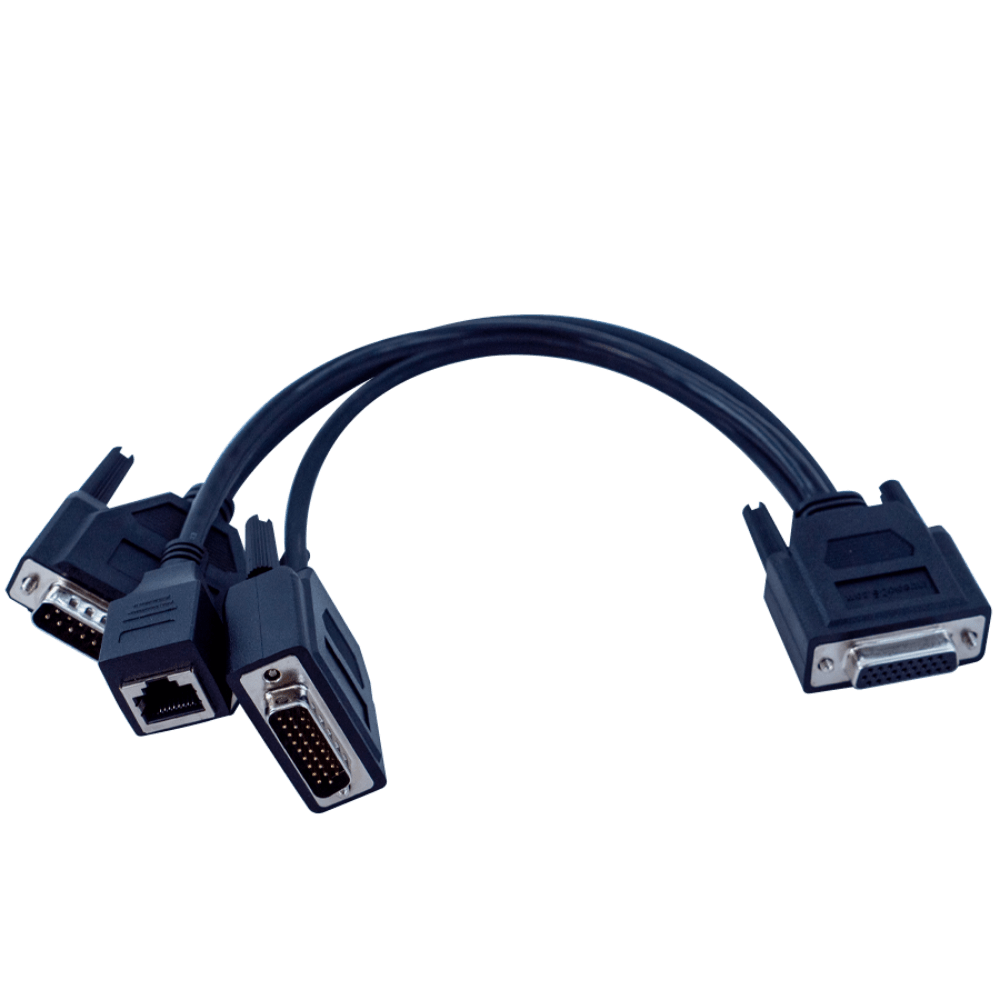

Converts the HD-26F connector on the neoVI FIRE2 and FIRE2 VNET to HD-26M, DB-25M and RJ-45 (Ethernet) connectors
Overview
This adapter cable converts the HD-26F connector on the FLEXRAY-VNET-Z (for the neoVI PLASMA and neoVI ION) to 1x DB-26M, 1xDB-25M, and 1x RJ-45 (Ethernet) connector.
The DB-25M carries primarily CAN/FD networks.
The DB-26M carries FlexRay networks.
The RJ-45 carries 1x 100BASE-TX network.
| Signal | HD-26F Pin # | HD-26M Pin # (FR) | DB-25M Pin # (CAN/FD) | RJ-45 Pin # (Eth/DoIP/XCPoE) |
|---|---|---|---|---|
| ETH TX+ | 1 | - | - | 1 |
| HS CAN 4 L | 2 | - | 23 | - |
| HS CAN 5 L | 3 | - | 22 | - |
| HS CAN 1 L | 4 | - | 15 | - |
| MS CAN 1 L | 5 | - | 6 | - |
| HS CAN 2 L | 6 | - | 17 | - |
| HS CAN 3 L | 7 | - | 20 | - |
| HS CAN 6 L | 8 | - | 4 | - |
| ETH TX - | 9 | - | - | 2 |
| GND | 10 | 10 | 13 | - |
| ETH RX+ | 11 | - | - | 3 |
| HS CAN 4 H | 12 | - | 18 | - |
| HS CAN 5 H | 13 | - | 21 | - |
| HS CAN 1 H | 14 | - | 14 | - |
| MS CAN 1 H | 15 | - | 5 | - |
| HS CAN 2 H | 16 | - | 16 | - |
| HS CAN 3 H | 17 | - | 9 | - |
| HS CAN 6 H | 18 | - | 3 | - |
| V BATT | 19 | - | 25 | - |
| ETH RX- | 20 | - | - | 6 |
| FLEXRAY 1A + | 21 | 1 | - | - |
| FLEXRAY 1A - | 22 | 11 | 1 | - |
| FLEXRAY 2A + / 1B + | 23 | 2 | 2 | - |
| FLEXRAY 2A - / 1B - | 24 | 12 | 3 | - |
| ETH ACTIVATE | 25 | - | 4 | - |
| DNC | 26 | - | - | - |
Physical Dimensions:
