RAD-Galaxy 100BASE-T1 Cable Set (2x NanoMQS to Molex Mini50)

galaxy-br-mini50-cable

Product Code:GALAXY-BR-MINI50-CABLE

Adapts the two NanoMQS connectors of the RAD-Galaxy to 6x Molex MINI50 connectors.

Overview

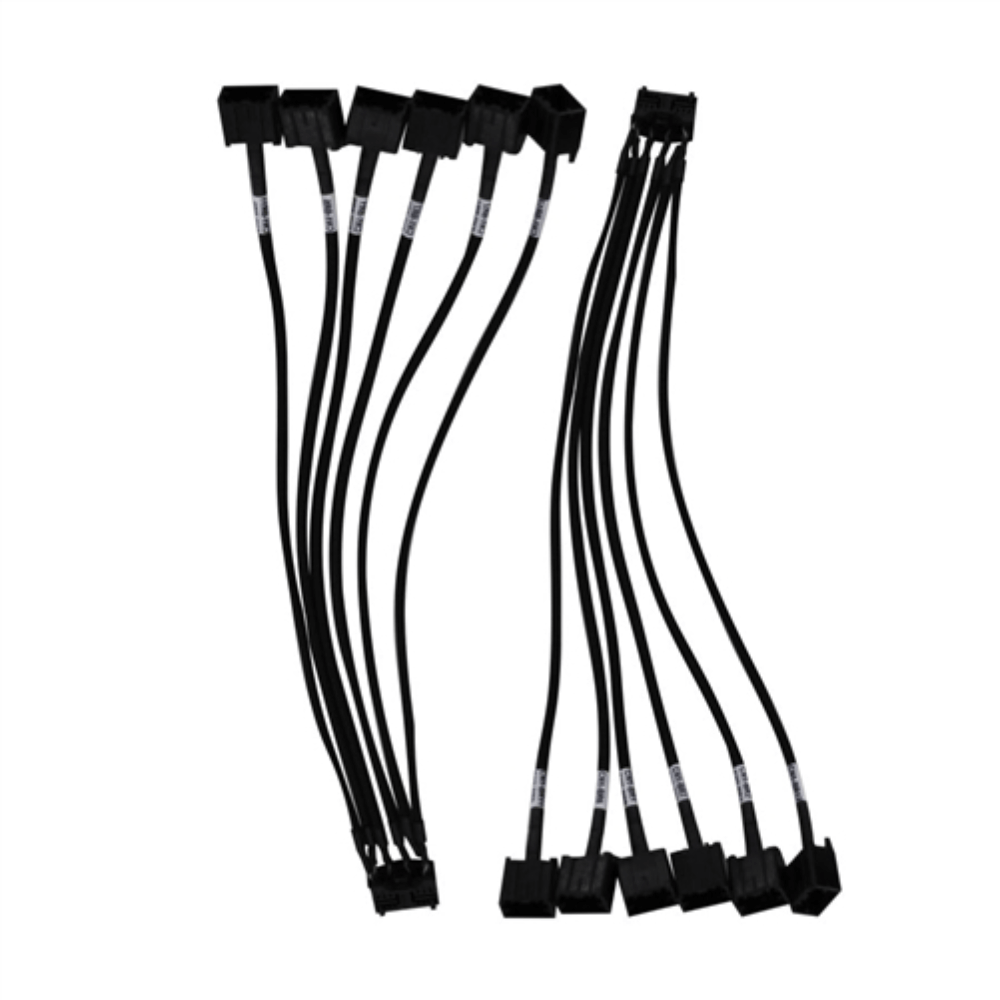

This cable set adapts the two NanoMQS connectors of the RAD-Galaxy to Molex MINI50 connectors. Each Mini50 connector carries one of the BR/100BASE-T1 ports.

This cable set includes 2x cables. Each cable adapts one NanoMQS to 6x MINI50 cables. The labeling provided denotes the BR channel given the NanoMQS connector it is plugged into (CN1 or CN2.)

Note the following RAD-Galaxy channel pairings for proper tapping of ports, the pairings for BR5-BR8 and BR6-BR7 do not follow the pattern of the rest of the pairs but this pairing is correct:

BR1 - BR2
BR3 - BR4
BR5 - BR8
BR6 - BR7
BR9 - BR10
BR11 - BR12

Physical Dimensions:

  • Length: 12" (30.48 cm)
  • Weight: 11 oz (312 g)

For more details, please visit our product support page or contact our support team.
