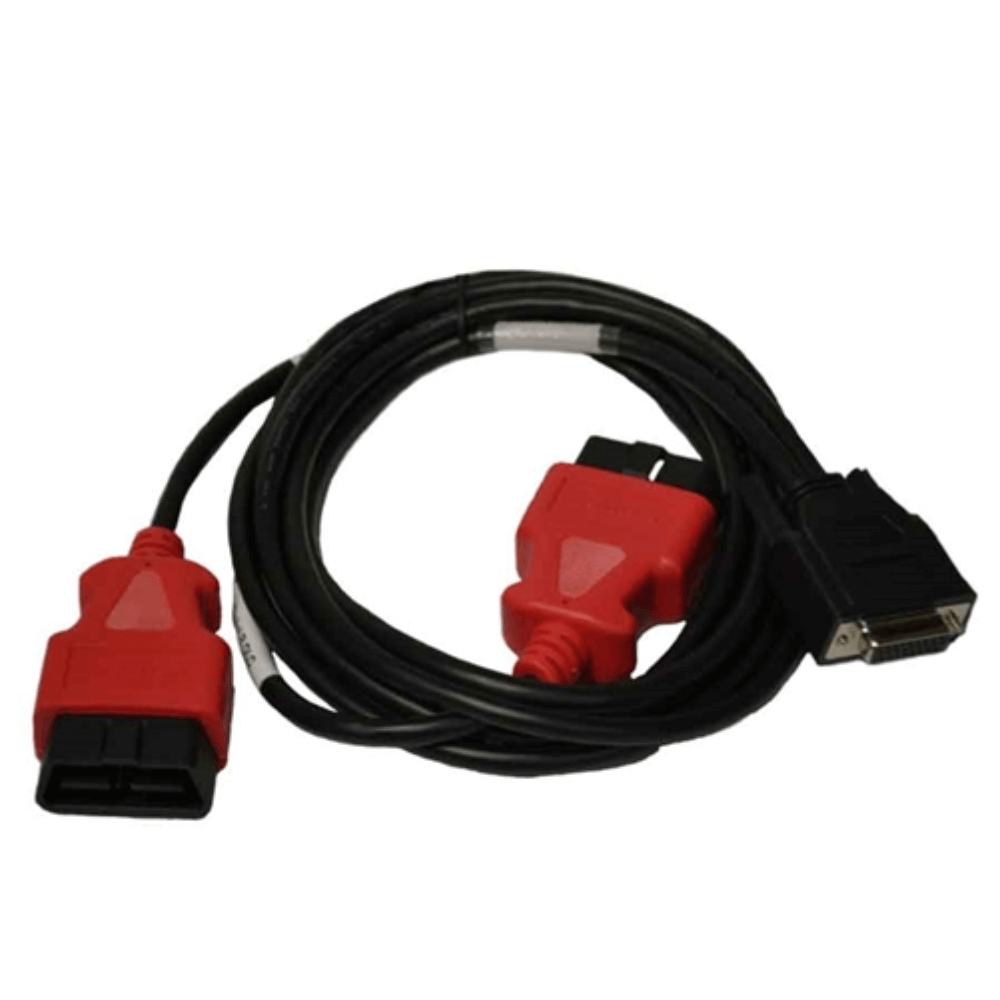

Global B OBD Cable (DB-26HD to OBD X 2)

gm-fire2-cable

Product Code:GM-FIRE2-CABLE

Overview

This adapter cable converts the HD-26F connector on the neoVI FIRE2 and FIRE2 VNET (for neoVI Plasma and neoVI ION) to two SAE J1962 mating connectors. One for connection to a Global B DLC, the other for connection to a proprietary harness.

This can also be used with the RAD-Galaxy when attached with the RAD-Galaxy to FIRE-2 Adaptor Cable.

It includes:

  • One DB-26HD connector
  • Two SAE J1962 mating connectors

ICS Hardware Label DB26 Pin OBDII Connector 1 Pin OBDII Connector 2 Pin
Female 4 Foot - Test Harness DLC 6 Foot - Global B DLC
ETH TX+ 1 3
DW CAN 04 L
(HS CAN 4 L)
2 14
DW CAN 05 L
(HS CAN 5 L)
3 11
DW CAN 01 L
(HS CAN 1 L)
4 14
DW CAN 08 L
(MS CAN L)
5 9
DW CAN 02 L
(HS CAN 2 L)
6 10
DW CAN 03 L
(HS CAN 3 L)
7 12
DW CAN 06 L / LSFT CAN 01 L 8 15
ETH TX - 9 11
GND 10 5 5
ETH RX+ 11 12
DW CAN 04 H
(HS CAN 4 H)
12 6
DW CAN 05 H
(HS CAN 5 H)
13 3
DW CAN 01 H
(HS CAN 1 H)
14 6
DW CAN 08 H
(MS CAN H)
15 1
DW CAN 02 H
(HS CAN 2 H)
16 2
DW CAN 03 H
(HS CAN 3 H)
17 4
DW CAN 06 H / LSFT CAN 01 H / SW CAN 02 18 7
V BATT 19 16 16
ETH RX- 20 13
DW CAN 07 L / LSFT CAN 02 L 21 9
ISO K / LIN 1 22
LIN 02 23
LIN 03 24
ETH ACTIVATE 25 8
DW CAN 07 H / LSFT CAN 02 H / SW CAN 01 26 1

Physical Dimensions:

  • Max Length: 6 feet (1.8 meters)
