Product Code: GM-GB-CAN9

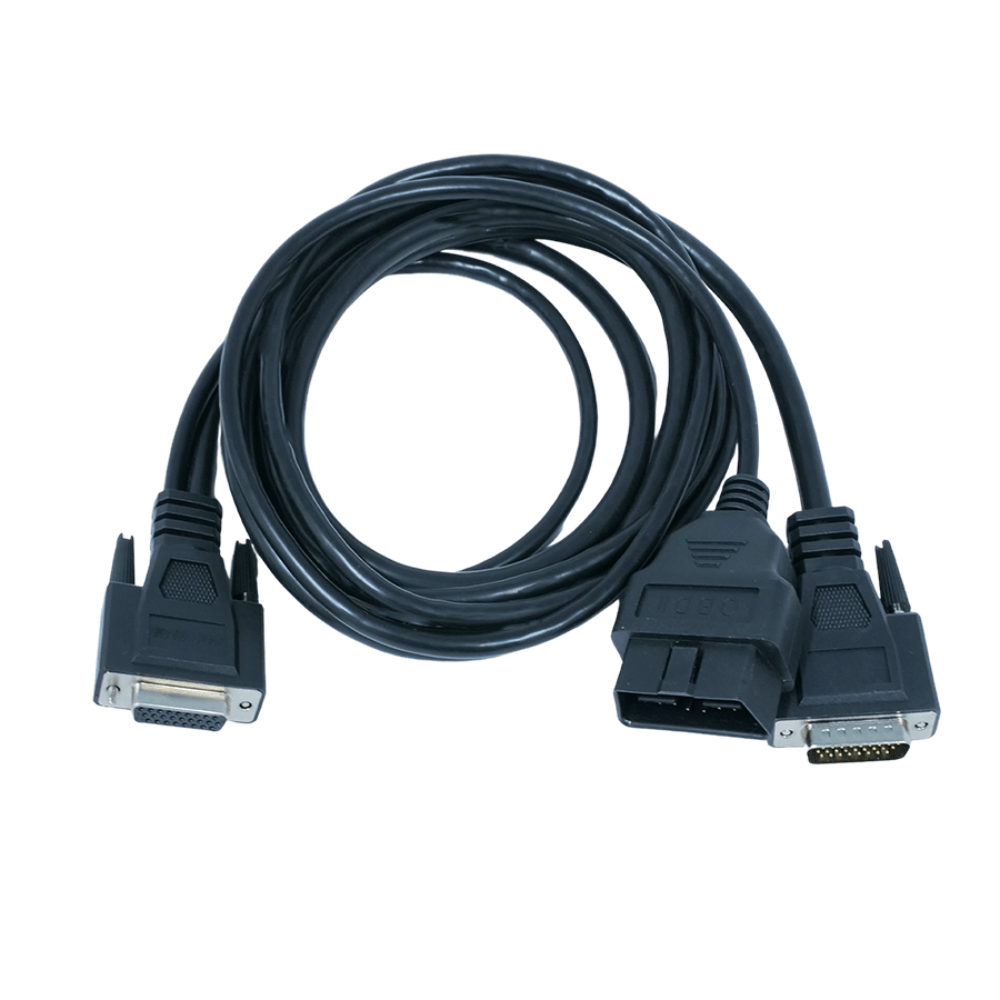

DB26 Y Cable to SAE J1962 (OBD) Connector + DB26HD connector for a proprietary harness.
This cable adapts neoVIs from the DB26 connector to two connectors: One SAE J1962 (OBD) Connector, and one DB26HD connector for a proprietary harness. This cable can also be used on the RAD-Galaxy when using the RAD-Galaxy to Fire 2 Adaptor cable.
Pinout
| ICS Hardware Label | DB26HD-F neoVI Connector |
J1962-M 6' ALDL |
DB26HD-M 4' 26 Pin |
|---|---|---|---|
| HS CAN 4 L | 2 | - | 2 |
| HS CAN 5 L | 3 | - | 3 |
| HS CAN 1 L | 4 | 14 | - |
| MS CAN 1 L | 5 | - | 5 |
| HS CAN 2 L | 6 | - | 6 |
| HS CAN 3 L | 7 | - | 7 |
| HS CAN 6 L / LSFT CAN 1 L | 8 | - | 8 |
| ETH TX - | 9 | 11 | - |
| GND | 10 | 5 | 10 |
| ETH RX+ | 11 | 12 | - |
| HS CAN 4 H | 12 | - | 12 |
| HS CAN 5 H | 13 | - | 13 |
| HS CAN 1 H | 14 | 6 | - |
| MS CAN 1 H | 15 | - | 15 |
| HS CAN 2 H | 16 | - | 16 |
| HS CAN 3 H | 17 | - | 17 |
| HS CAN 6 H / LSFT CAN 1 H / SW CAN 2 | 18 | - | 18 |
| V BATT | 19 | 16 | 19 |
| ETH RX- | 20 | 13 | - |
| HS CAN 7 L / LSFT CAN 2 L | 21 | - | 21 |
| ISO K / LIN 1 | 22 | - | - |
| LIN 2 | 23 | - | - |
| LIN 3 | 24 | - | - |
| ETH ACTIVATE | 25 | 8 | - |
| HS CAN 7 H / LSFT CAN 2 H / SW CAN 1 | 26 | - | 26 |
Length: 6 feet (1.8 meters)
