Product Code: MATENET-CABLE-1

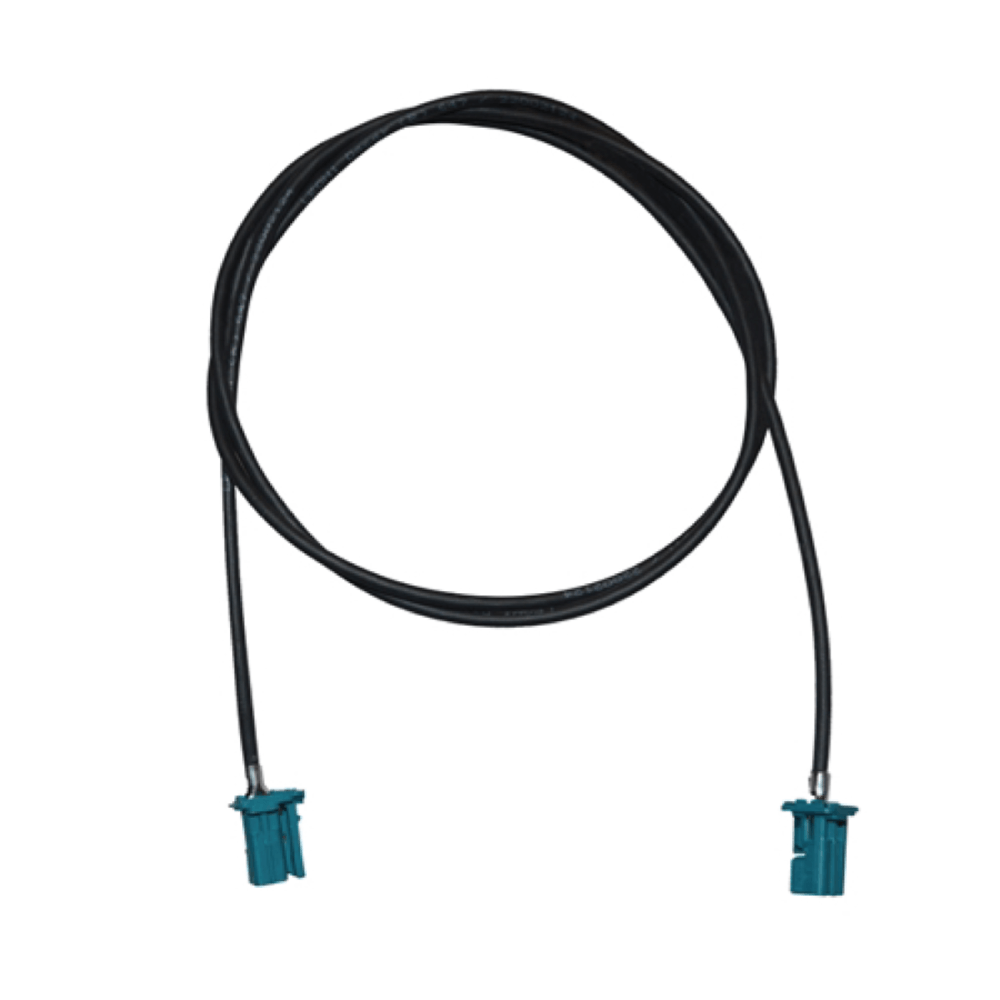

1000BASE-T1 cable, with universally keyed TE MateNET connectors (1 meter, STP)
An Automotive Gigabit Ethernet (1000BASE-T1) cable designed for use with Intrepid's Automotive Ethernet products, such as the RAD-SuperMoon and RAD-Moon 2. The cable consists of a single shielded twisted pair (STP), protected by a non-conductive plastic cover, each end terminated with an automotive-approved TE MATEnet connector. It meets IEEE 1000BASE-T1 physical specifications.
A connector designed specifically for 1000BASE-T1 and Automotive Requirements
MATEnet Connector Pinout
| Pin # | Label | Desription |
|---|---|---|
| 1 | TRD+ | Data transmit and receive, positive |
| 2 | TRD- | Data transmit and receive, negative |
Mating Connector Information
| Component | TE Part Number |
|---|---|
| Connector | 9-2302454-9 |
| Insert | 2302450-1 |
| Strain relief | 9-2302452-1 |
| Crimp sockets | 1-1703930-1 |
For more details, please visit our product support page or contact our support team.
