Product Code: NEOVI-OBD-CAN-1

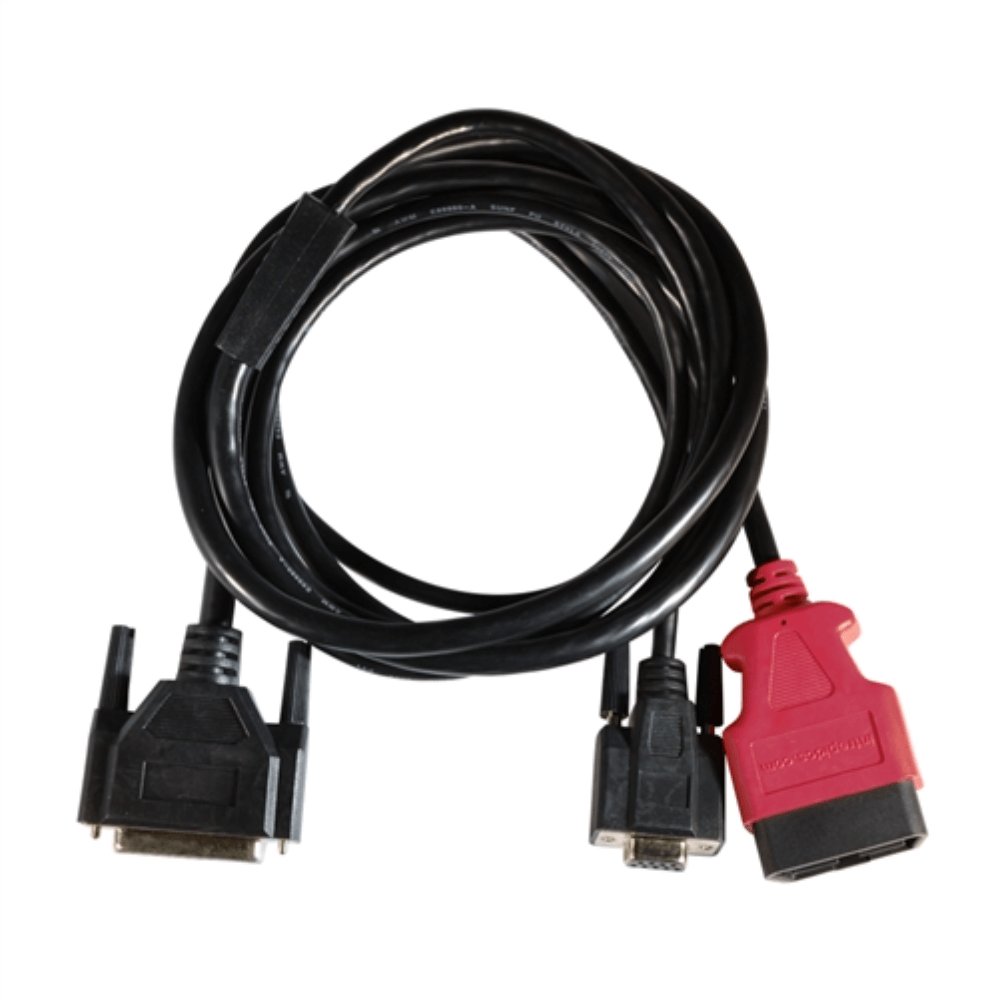

Adapts the DB-25M connector on Intrepid hardware devices to a standard OBD-II connector with a pinout suitable for GM vehicles, as well as a separate DB-9 connector for attaching a separate CAN accessory.
Overview
This cable adapts the DB-25M connector on Intrepid hardware devices to a standard OBD-II connector as well as a separate DB-9 connector. The OBD pinout differs from that of the NEOVI-OBD-MULTI, and is well-suited to GM vehicles. The DB-9F connector can be used to connect a separate CAN accessory at the same time, for applications such as data acquisition.
A special version of this cable for RAD-Star firmware flashing is also available.
| OBD-II Pin # | OBD-II Signal | DB-25F Signal | DB-25F Pin # | DB-9F Signal | DB-9F Pin # |
|---|---|---|---|---|---|
| 1 | Discretionary* (GMLAN SW CAN) | SW CAN | 1 | ||
| 2 | SAE J1850 + | N/C | N/C | ||
| 3 | Discretionary* (GMLAN MS CAN H) | MS CAN H | 5 | ||
| 4 | Chassis Ground | N/C | N/C | ||
| 5 | Signal Ground | PWR GND | 13 | PWR GND | 3 |
| 6 | Discretionary* (GMLAN HS CAN H) | HS CAN 1 H | 14 | ||
| 7 | ISO9141/K | ISO9141/K/LIN1 | 8 | ||
| 8 | Discretionary* | N/C | N/C | ||
| 9 | Discretionary* (GM ALDL) | HS CAN 3 H | 19 | ||
| 10 | SAE J1850 - | HS CAN 3 L | 20 | ||
| 11 | Discretionary* (GMLAN MS CAN L) | MS CAN L | 6 | ||
| 12 | Discretionary* | HS CAN 2 H | 16 | ||
| 13 | Discretionary* | HS CAN 2 L | 17 | ||
| 14 | Discretionary* (GMLAN HS CAN L) | HS CAN 1 L | 15 | ||
| 15 | L line of ISO 9141-2 | ISO L | 7 | ||
| 16 | Unswitched Vehicle Battery Positive | VBATT | 25 | VBATT | 9 |
| MISC DIO 1 | 10 | MISC DIO 1 | 1 | ||
| HS CAN 3 L | 20 | HS CAN 3 L | 2 | ||
| TSYNC CLK L | 22 | TSYNC CLK L | 4 | ||
| MISC DIO 3 | 23 | MISC DIO 3 | 6 | ||
| HS CAN 3 H | 19 | HS CAN 3 H | 7 | ||
| TSYNC CLK H | 21 | TSYNC CLK H | 8 |
Note: The table above shows standard signals for the OBD-II connector; this includes J1850, which is not supported by current Intrepid hardware devices.
Physical Dimensions:
For more details, please visit our product support page or contact our support team.
