Product Code: NEOVI-OBD-MULTI-RIGHT
Converts the DB-25M connector on many Intrepid hardware devices to a right-angled OBD-II connector, with a pinout to meet the needs of most newer vehicles using multiple DW CAN channels.
Overview

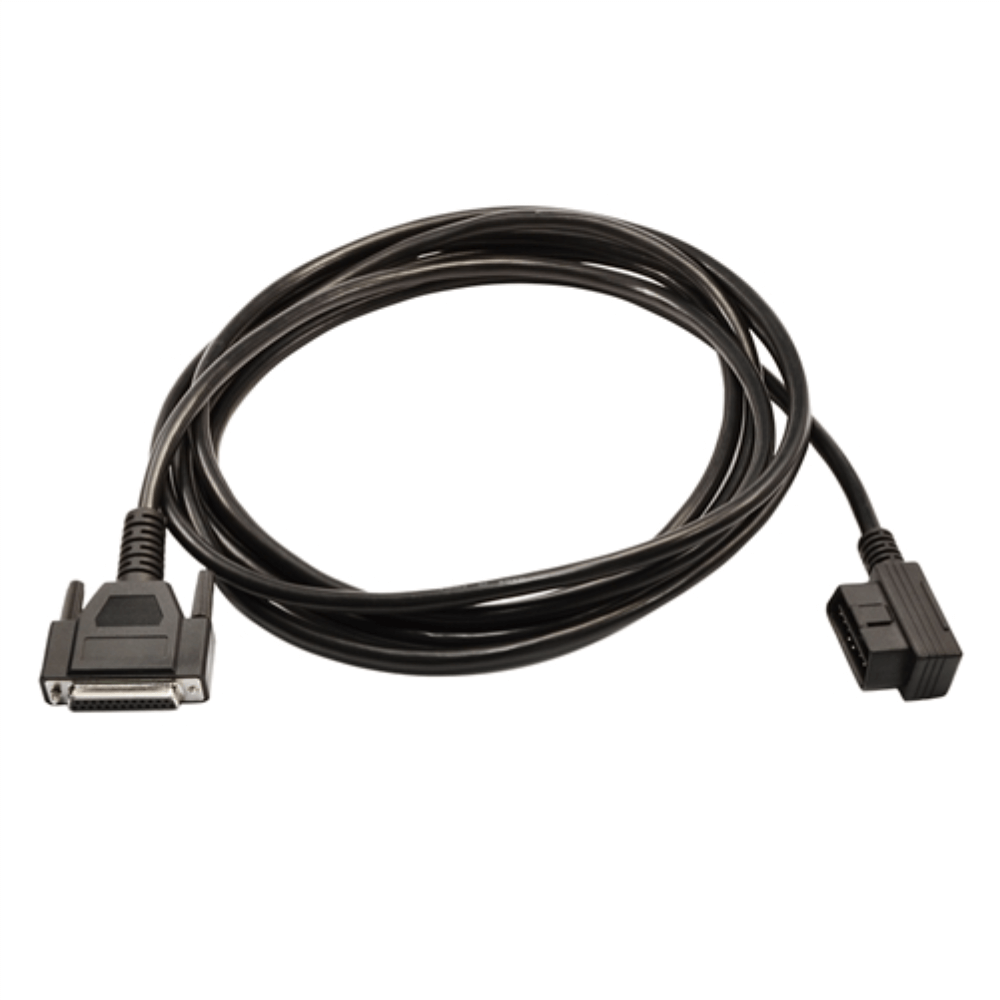

This cable converts the DB-25M connector on many Intrepid hardware devices to a right-angled OBD-II connector, for applications where this is required. It differs from the NEOVI-OBD-1 in that its pinout matches the needs of most newer vehicles using multiple DW CAN channels.
Note that this cable is the same as the NEOVI-OBD-MULTI except for the shape of the OBD-II connector.| OBD-II Pin # | OBD-II Signal | DB-25F Signal | DB-25F Pin # |
|---|---|---|---|
| 1 | Discretionary* | HS CAN 3 H | 19 |
| 2 | SAE J1850 + | N/C | N/C |
| 3 | Discretionary* | MS CAN H | 5 |
| 4 | Chassis Ground | N/C | N/C |
| 5 | Signal Ground | PWR GND | 13 |
| 6 | CAN H (ISO15765-4 and SAE-J2284) | HS CAN 1 H | 14 |
| 7 | ISO9141/K | ISO9141/K/LIN1 | 8 |
| 8 | Discretionary* | N/C | N/C |
| 9 | Discretionary* | HS CAN 3 L | 20 |
| 10 | SAE J1850 - | N/C | N/C |
| 11 | Discretionary* | MS CAN L | 6 |
| 12 | Discretionary* | HS CAN 2 H | 16 |
| 13 | Discretionary* | HS CAN 2 L | 17 |
| 14 | CAN L (ISO15765-4 and SAE-J2284) | HS CAN 1 L | 15 |
| 15 | L line of ISO9141-2 | ISO L | 7 |
| 16 | Unswitched Vehicle Battery Positive | VBATT | 25 |
Note: The table above shows standard signals for the OBD-II connector; this includes J1850, which is not supported by current Intrepid hardware devices.
Physical Dimensions:
For more details, please visit our product support page or contact our support team.
