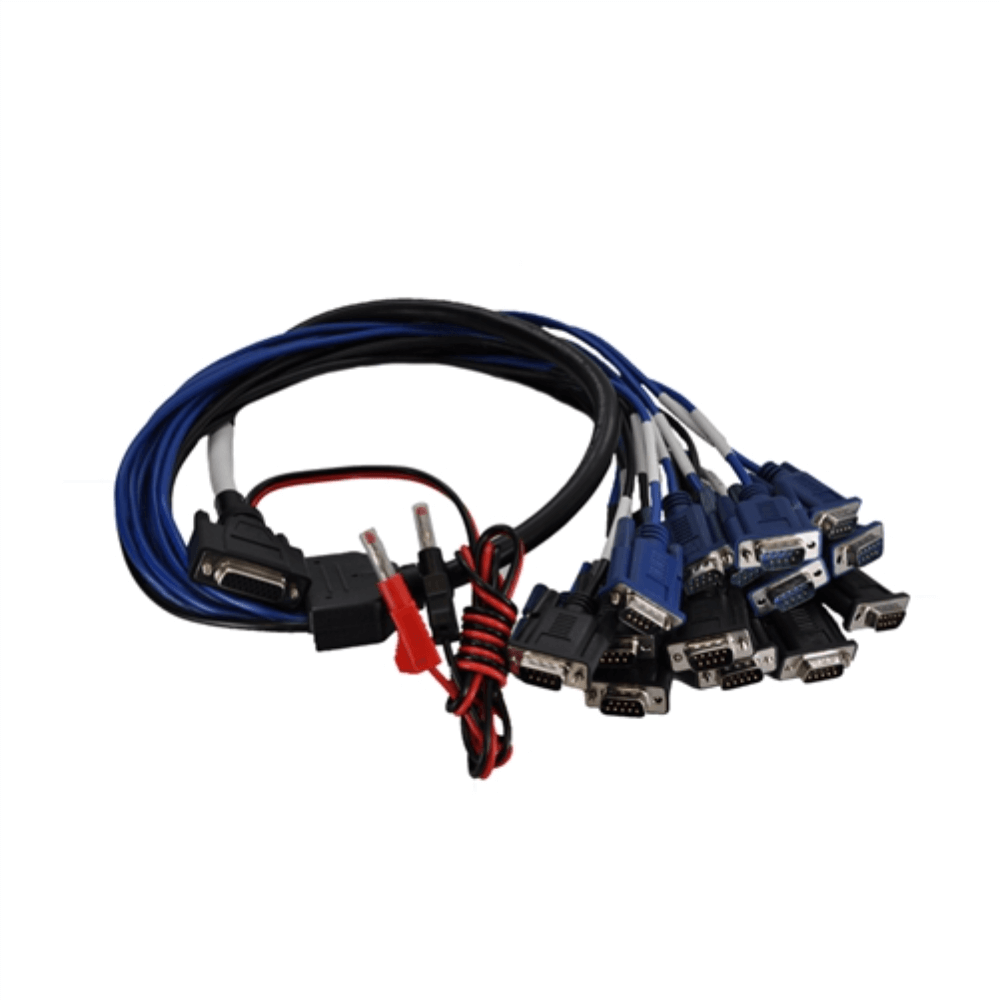

RAD-Galaxy DB-26HD Female Breakout Cable (DB-26HD Female to 14x DB-9M + 2x Banana Plugs)

rg-db26-db9-breakout

Product Code:RG-DB26-DB9-BREAKOUT

Note : For use with the RAD-Galaxy ONLY

Breaks out the HD-26F connector on the RAD-Galaxy to individual DB-9M connectors CAN, LIN and miscellaneous I/O, and two banana plugs for power.

Overview

This cable breaks out the DB-26HD Female connector on the RAD-Galaxy to individual DB-9M connectors for multiple CAN and LIN channels, plus an additional DB-9M for miscellaneous I/O and two banana plugs for power.

Note: This cable does NOT provide HSCAN7 nor AOUT1. If either of these are needed, please contact Intrepid for the correct part number and availability.

Connector Pinouts and Signal Mapping

1) HSCAN, MSCAN and Switchable SWCAN

Pin #(DB26PF) 05 15 06 16 07 17 02 12 03 13 08 18 04 14 01 11
Signal (DB 9M) HSCAN1 MSCAN HSCAN2 HSCAN3 HSCAN4 HSCAN5 HSCAN6/ SWCAN2 HSCAN7/ SWCAN1
CAN Low 2
CAN High 7
GND/PWR 3 3 3 3 3 3 3 3

LIN and AO

Pin # (DB26PF) 22 09 20 21
Signal (DB 9M) LIN1 A01
2 2 2 2
GND/PWR 3 3 3 3

PWMIO/AIN

Pin # (DB26PF) 23 24 25 26
Signal (DB 9M) AIN 1
2 2 2 2
GND/PWR 3 3 3 3

Banana Jacks

Pin #(HD26F) 19 10
Plugs PWR+ GND-

Physical Dimensions:

  • Length: 12" (30.48 cm)
  • Weight: 11 oz (312 g)

For more details, please visit our product support page or contact our support team.
