RAD-Moon 100BASE-T1 to DB9 Cable (Molex Mini50 to DB9M)

rm-br-db9m-cable

Product Code:RM-BR-DB9M-CABLE

Converts the Molex Mini50 connector on the RAD-Moon to 1 x DB-9M.

Overview

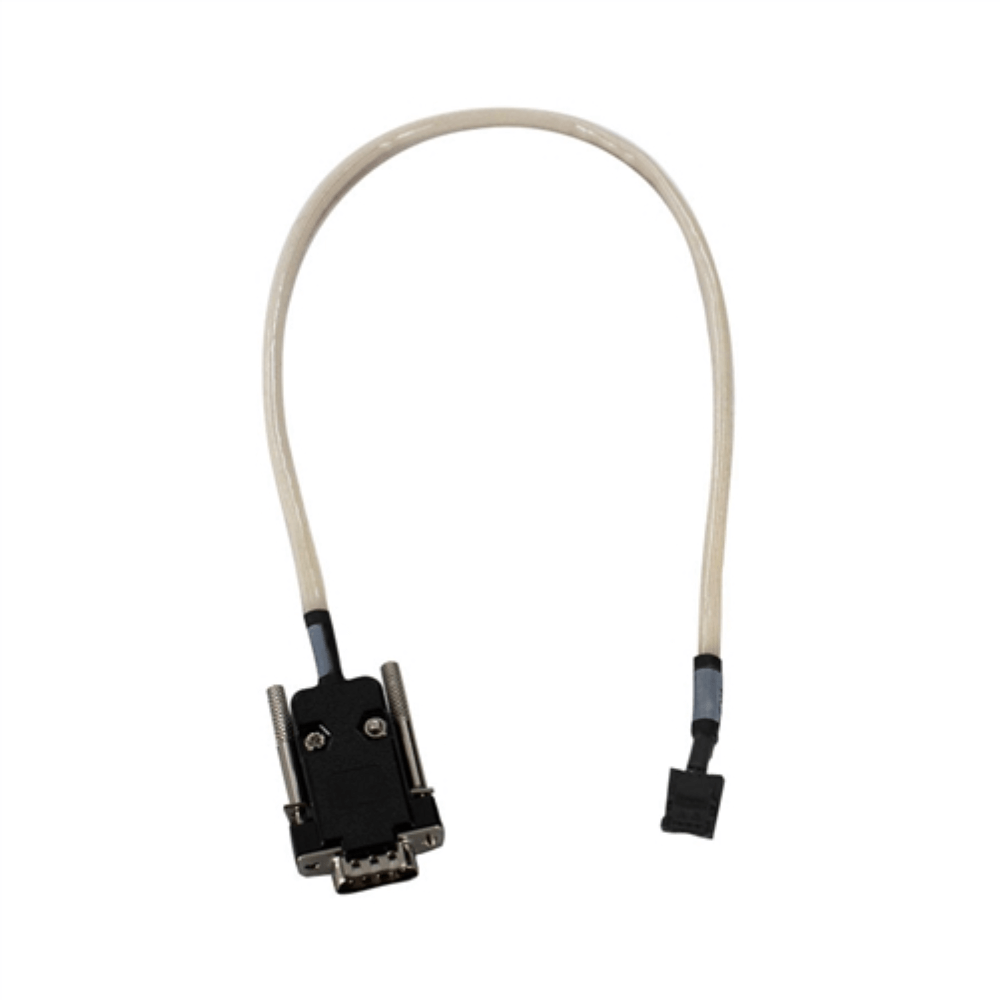

This cable adapts the Molex Mini50 connector of the RAD-Moon to 1 x DB9 male connector.

one Mini50 to DB9 cable.

DB9 Pinout
Pin 4 Mini50 2 Hardware + (P)
Pin 5 Mini50 3 Hardware – (N)
Connector Pinouts and Signal Mapping
Description RAD-Moon Pin # DB9 Pin #
TRD + 2 4
TRD - 3 5
Not Used 1,4 N/C
Not Used N/C 1-3, 6-9

Physical Dimensions:

  • Length: 12" (30.48 cm)
  • Weight: 11 oz (312 g)

For more details, please visit our product support page or contact our support team.
