RAD-Star 2 100BASE-T1 to DB9 Cable (NanoMQS to DB9M)

rs2-br-db9m-cable

Product Code: RS2-BR-DB9M-CABLE

Converts the NanoMQS connector on the RAD-Star 2 to 1 x DB-9M.

Overview

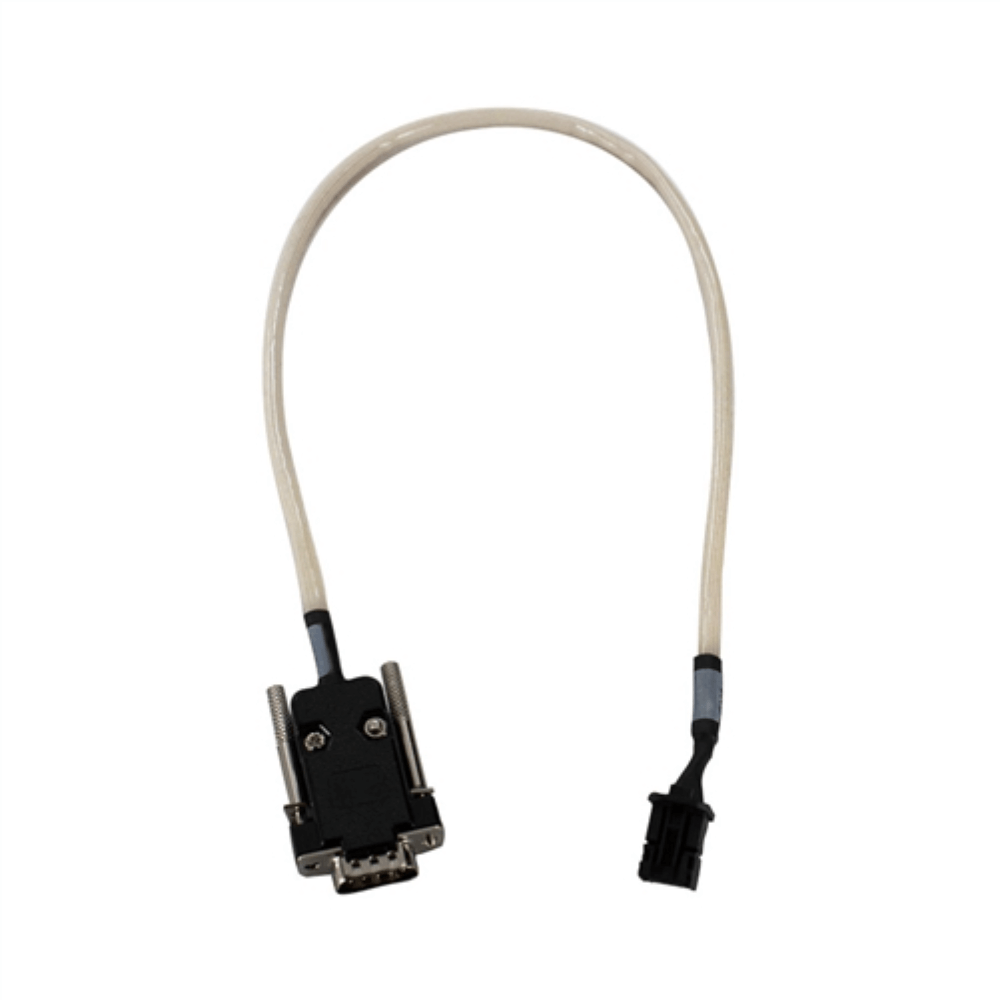

This cable adapts the NanoMQS connector of the RAD-Star 2 to 1 x DB9 male connector.

Both 100BASE-T1 ports are connected to a single DB-9 male connector.

Includes one NanoMQS to DB9 cable.

Connector Pinouts and Signal Mapping
NanoMQS - Pin # Pin Description DB9 Male Pin #
1,2,5,6 No Connection 3,4,6-9
3 TRD/BR 1 - 2
4 TRD/BR 1 + 1
7 TRD/BR 2 - 5
8 TRD/BR 2 + 4

Physical Dimensions:

  • Length: 12" (30.48 cm)
  • Weight: 11 oz (312 g)

For more details, please visit our product support page or contact our support team.
