Product Code: VCAN3-Y-DB9

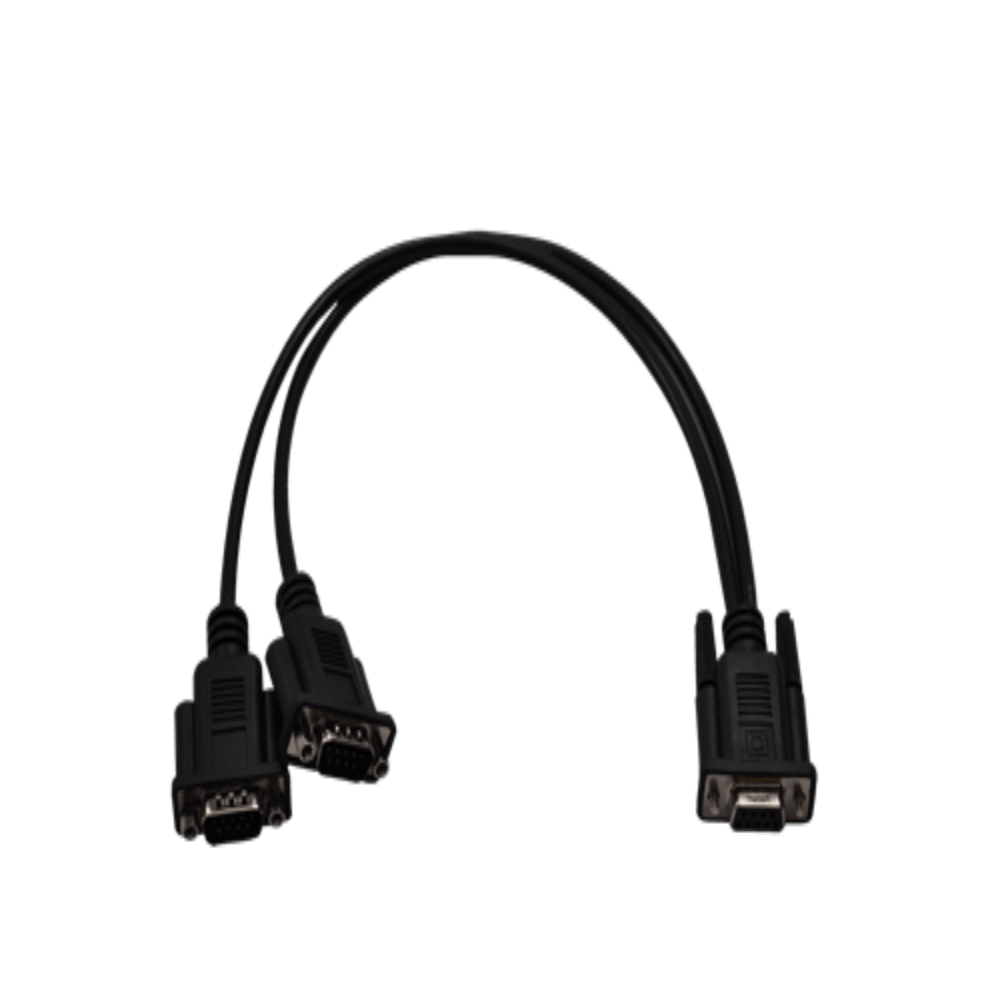

Splits the two channels on a ValueCAN 3 or ValueCAN 4 onto separate DB-9 connectors, allowing attachment to two different devices or networks.
Overview
This cable splits the two channels on a ValueCAN3 onto separate DB-9 connectors, allowing attachment to two different devices or networks.
| Signal | DB-9F Pin # | DB-9M CAN1 Pin # | DB-9M CAN2 Pin # |
|---|---|---|---|
| Trigger | 1 | N/C | N/C |
| CAN 1 Low | 2 | 2 | N/C |
| GND | 3 | 3 | 3 |
| CAN 2 Low | 4 | N/C | 2 |
| GND (Shield) | 5 | 5 | 5 |
| GND | 6 | 6 | 6 |
| CAN 1 High | 7 | 7 | N/C |
| CAN 2 High | 8 | N/C | 7 |
| V+ | 9 | 9 | 9 |
Physical Dimensions:
For more details, please visit our product support page or contact our support team.
