Product Code: VNET-DB25-DB9-CABLE
Adapts the HD-26F connector on the neoVI ION, PLASMA or FIRE 2 to DB-25M and DB-9M connectors for attachment to vehicle networks.
Overview

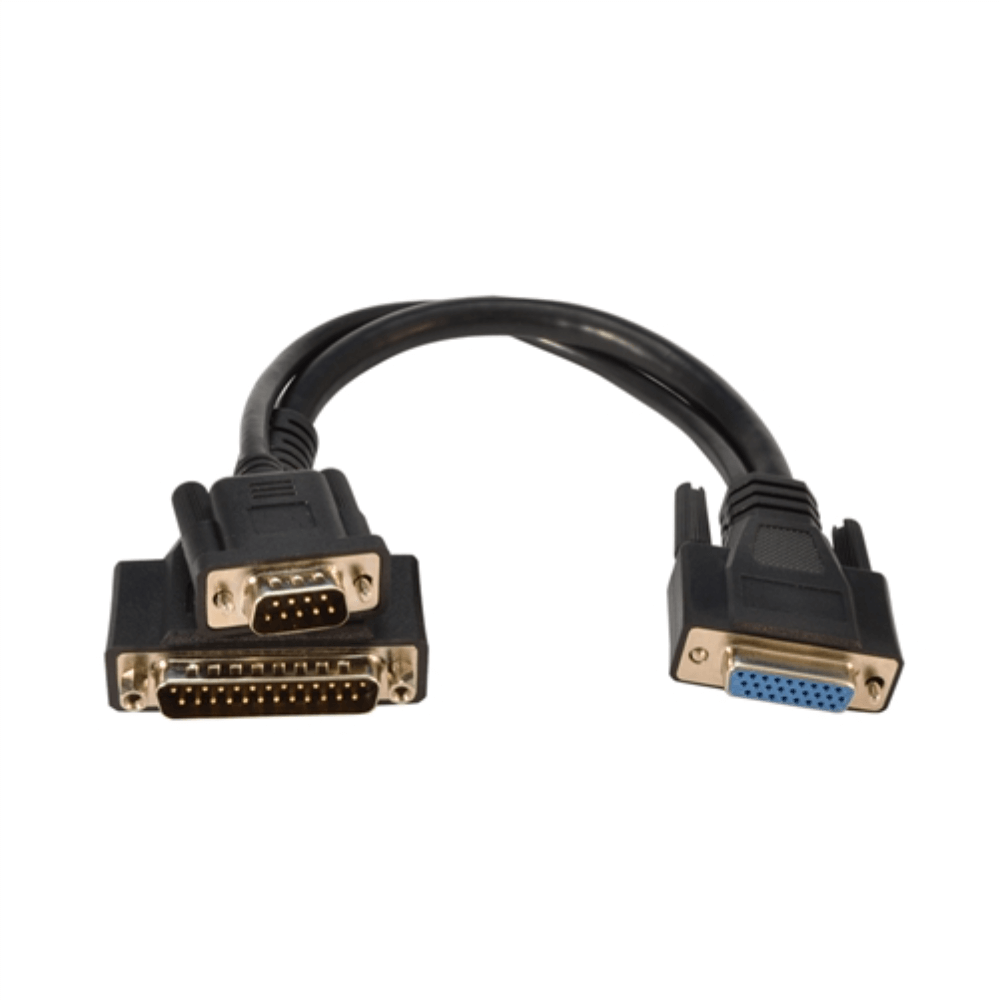

This cable adapts the HD-26F connector on the neoVI ION, PLASMA or FIRE 2 to DB-25M and DB-9M connectors for attachment to vehicle networks. The cable's pinouts match those of the neoVI FIRE.
| ION / PLASMA Signal | FIRE 2 Signal | HD-26F Pin # | DB-25M Pin # | DB-9M Pin # |
|---|---|---|---|---|
| MISC 1 (DIO) | ETH TX+ | 1 | 10 | -- |
| HS CAN 4 L | HS CAN 4 L | 2 | -- | 2 |
| HS CAN 5 L | HS CAN 5 L | 3 | -- | 4 |
| HS CAN 1 L | HS CAN 1 L | 4 | 15 | -- |
| MS CAN L | MS CAN 1 L | 5 | 6 | -- |
| HS CAN 2 L | HS CAN 2 L | 6 | 17 | -- |
| HS CAN 3 L | HS CAN 3 L | 7 | 20 | -- |
| LSFT CAN L | HS CAN 6 L / LSFT CAN 1 L | 8 | -- | -- |
| MISC 2 (DIO/AI) | ETH TX - | 9 | 2 | -- |
| GND | GND | 10 | 13 | 5 |
| MISC 3 (DIO/AI) | ETH RX+ | 11 | 11 | -- |
| HS CAN 4 H | HS CAN 4 H | 12 | -- | 7 |
| HS CAN 5 H | HS CAN 5 H | 13 | -- | 8 |
| HS CAN 1 H | HS CAN 1 H | 14 | 14 | -- |
| MS CAN H | MS CAN 1 H | 15 | 5 | -- |
| HS CAN 2 H | HS CAN 2 H | 16 | 16 | -- |
| HS CAN 3 H | HS CAN 3 H | 17 | 19 | -- |
| LSFT CAN H | HS CAN 6 H / LSFT CAN 1 H / SW CAN 2 | 18 | 3 | -- |
| V BATT | V BATT | 19 | 25 | -- |
| MISC 4 (DIO/AI) | ETH RX- | 20 | -- | 6 |
| ISO L/LIN 5 | HS CAN 7 L / LSFT CAN 2 L | 21 | 7 | -- |
| ISO K/LIN 1 | ISO K / LIN 1 | 22 | 8 | -- |
| LIN 2 | LIN 2 | 23 | -- | 1 |
| LIN 3 | LIN 3 | 24 | -- | 3 |
| LIN 4 | ETH ACTIVATE | 25 | 9 | -- |
| SW CAN | HS CAN 7 H / LSFT CAN 2 H / SW CAN 1 | 26 | 1 | -- |
Physical Dimensions:
For more details, please visit our product support page or contact our support team.
