11. Technical Specifications
11.1. neoVI FIRE 3 Technical-Specifications
Network Interfaces |
10/100/1000BASE-T |
3 |
CAN-FD |
16 |
|
LIN |
8 |
|
Host Computer Interfaces |
Ethernet (100/1000BASE-T) |
|
USB 3 |
||
Operating Voltage Range |
5.5V-40V |
|
Power Comsumption |
5W |
|
Operating Temperature |
-40°C to +85°C |
|
Relative Humidity |
||
Dimensions |
60cm by 11.22cm by 3.97cm |
|
Weight |
less than 1 lb. (.45 kg) |
|
11.1.1. neoVI Fire3 Dimensions
Click on the link below to download the Dimensions file.
11.2. neoVI RED 2 Technical-Specifications
Network Interfaces |
10/100/1000BASE-T |
2 |
CAN-FD |
Option for 2, 4 or 8x |
|
Host Computer Interfaces |
Ethernet (100/1000BASE-T) |
|
USB 3 |
||
Operating Voltage Range |
5.5V-40V |
|
Power Comsumption |
5W |
|
Operating Temperature |
-40°C to +85°C |
|
Relative Humidity |
||
Dimensions |
60cm by 11.22cm by 3.97cm |
|
Weight |
less than 1 lb. (.45 kg) |
|
11.2.1. neoVI RED2 Dimensions
Click on the link below to download the Dimensions file.
11.3. neoVI FIRE 3 FlexRay Technical-Specifications
Network Interfaces |
10/100/1000BASE-T |
2 |
CAN-FD |
15 |
|
LIN / K-Line |
4 |
|
Host Computer Interfaces |
Ethernet (100/1000BASE-T) |
|
USB 3 |
||
Operating Voltage Range |
5.5V-40V |
|
Power Consumption |
5W |
|
Operating Temperature |
-40°C to +85°C |
|
Relative Humidity |
— |
|
Dimensions |
13.60cm by 11.22cm by 3.97cm |
|
Weight |
less than 1 lb. (.45 kg) |
|

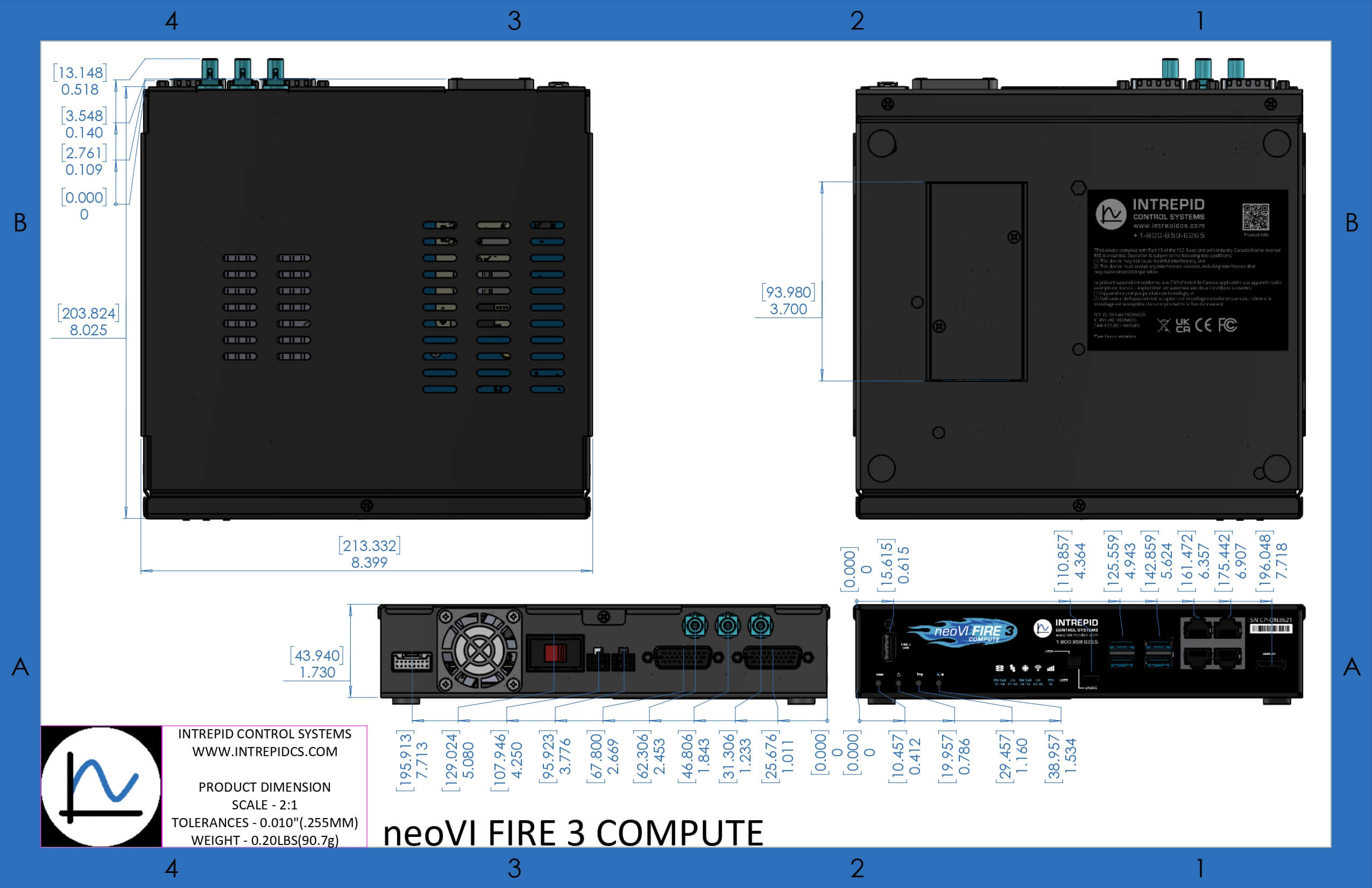

11.4. neoVI FIRE 3 COMPUTE Device Specifications
Processor |
Raspberry Pi 5 Compute Module (CM5) CM5008064 |
RAM/Flash |
Onboard CM5 eMMC, M.2 NVMe support. |
Networks |
16x CAN FD (w/ TJA1463), 8x LIN, 2x SW CAN, 2x LSFT CAN. |
Ethernet |
4x 1000BASE-T (w/ gPTP support). |
Video |
HDMI output, HD video recording support. |
Power |
5-60V Automotive power supply. |
